功能说明
上篇： [ ABAP SALV-颜色（列、行、单元格）
](http://mp.weixin.qq.com/s?__biz=Mzg3OTE2Njg0OQ==&mid=2247493882&idx=1&sn=e51c27345c23f3aabe70799f5cc8d935&chksm=cf0a3c14f87db502c8f9206999dbc5153b9bbff5a7c2ea804385d58c5993018703061f458331&scene=21#wechat_redirect)
本系列将通过模拟用户与开发者之间的对话场景， 来逐步演示SALV的使用。在本篇中，我们将延续前文内容，解决用户最新提出的需求。
今天我们将探讨SALV模型中如何添加 单元格样式 ？相信通过实际操作，你能迅速理解和掌握这些知识点。让我们一起动手尝试一下，看看如何实现这些功能吧！

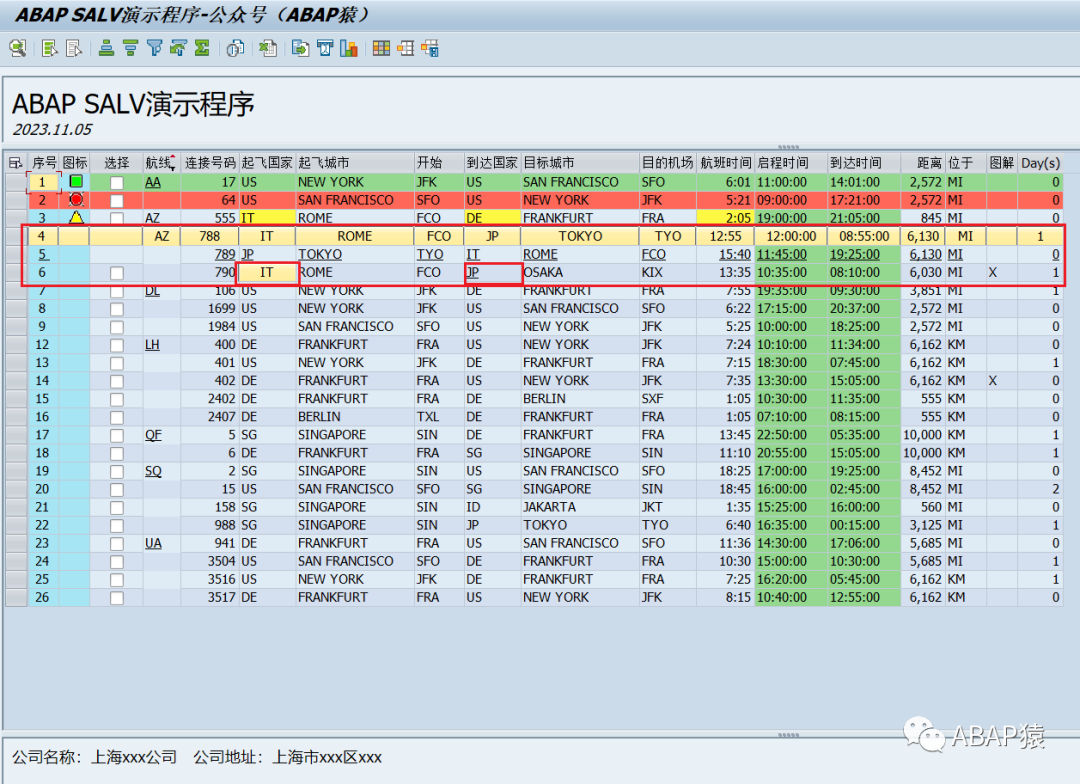

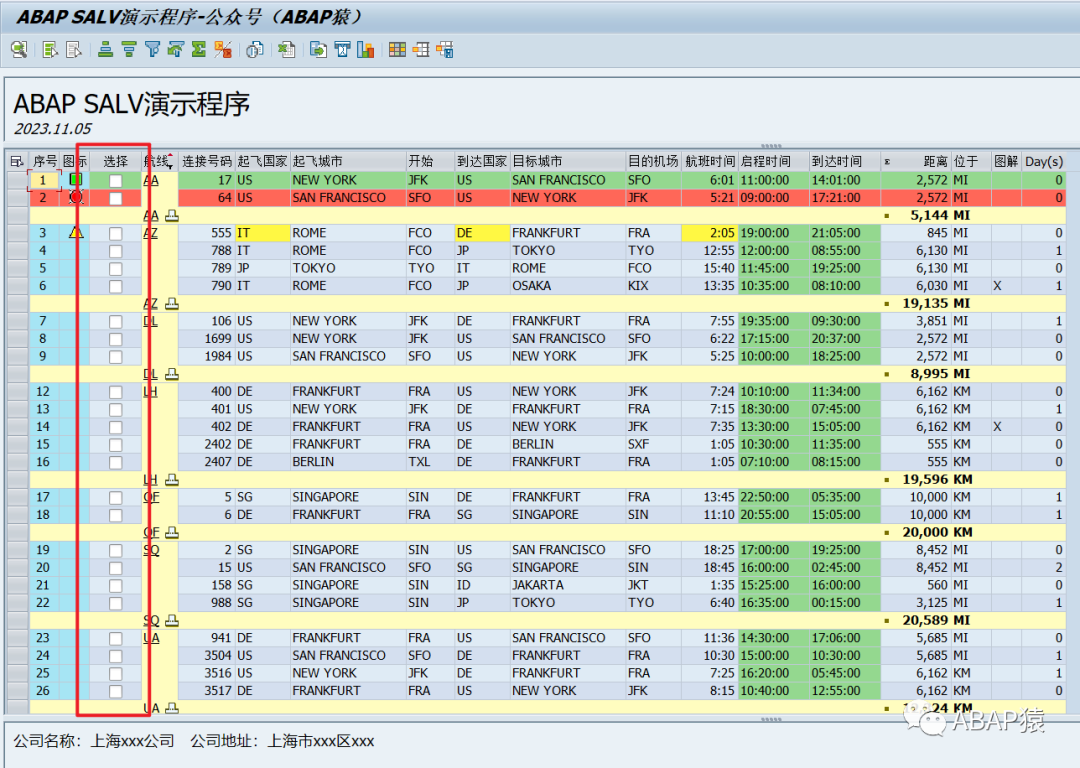

功能效果
第 19 天 用户说
添加复选列方便选择，按需设置单元格样式。
"列样式（checkbox hotspot）
lo_columns -> set_column_position ( columnname = 'CBOX' position = 1).
lo_column ?= lo_columns -> get_column ( columnname = 'CBOX' ).lo_column -> set_short_text ( '选择' ).
lo_column -> set_medium_text ( '选择' ).
lo_column -> set_long_text ( '选择' ).
lo_column -> set_alignment ( if_salv_c_alignment => centered ).
lo_column -> set_cell_type ( if_salv_c_cell_type => checkbox_hotspot )."行、单元格样式
DATA ls_ctyp TYPE salv_s_int4_column .
lo_columns -> set_cell_type_column ( 'CTYP' ).
LOOP AT gt_spfli INTO gs_spfli .CASE sy \- tabix .
WHEN 4 .
"行样式（button）
CLEAR ls_ctyp .
ls_ctyp \- columnname = '' .
ls_ctyp \- value = if_salv_c_cell_type => button .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN 5 .
"行样式（hotspot）
CLEAR ls_ctyp .
ls_ctyp \- columnname = '' .
ls_ctyp \- value = if_salv_c_cell_type => hotspot .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN 6 .
"单元格样式（button + hotspot）
CLEAR ls_ctyp .
ls_ctyp \- columnname = 'COUNTRYFR' .
ls_ctyp \- value = if_salv_c_cell_type => button .
APPEND ls_ctyp TO gs_spfli \- ctyp .CLEAR ls_ctyp .
ls_ctyp \- columnname = 'COUNTRYTO' .
ls_ctyp \- value = if_salv_c_cell_type => hotspot .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN OTHERS .
ENDCASE .
MODIFY gt_spfli FROM gs_spfli .
ENDLOOP .源码分享
TYPES
BEGIN OF gty_spfli_incl ,
cbox TYPE c ,
ctyp TYPE salv_t_int4_column ,
END OF gty_spfli_incl .DATA
BEGIN OF gs_spfli .
INCLUDE TYPE spfli .
INCLUDE TYPE gty_spfli_incl .DATA
END OF gs_spfli ,gt_spfli LIKE TABLE OF gs_spfli .
START-OF-SELECTION .
SELECT * FROM spfli INTO CORRESPONDING FIELDS OF TABLE gt_spfli UP TO30 ROWS .
DATA go_salv TYPE REF TO cl_salv_table .
cl_salv_table => factory (IMPORTING
r_salv_table = go_salvCHANGING
t_table = gt_spfli ).
*------------------------------------*
DATA lo_display TYPE REF TO cl_salv_display_settings .
lo_display = go_salv -> get_display_settings ( ).lo_display -> set_list_header ( 'ABAP SALV演示程序-公众号（ABAP猿）' ).
lo_display -> set_striped_pattern ( 'X' ).
*------------------------------------*
DATA lo_functions TYPE REF TO cl_salv_functions .
lo_functions = go_salv -> get_functions ( ).lo_functions -> set_all ( 'X' ).
*------------------------------------*
DATA lo_columns TYPE REF TO cl_salv_columns_table .
DATA lo_column TYPE REF TO cl_salv_column_table .
lo_columns = go_salv -> get_columns ( ).lo_columns -> set_optimize ( 'X' ).
"列样式（checkbox hotspot）
lo_columns -> set_column_position ( columnname = 'CBOX' position = 1).
lo_column ?= lo_columns -> get_column ( columnname = 'CBOX' ).lo_column -> set_short_text ( '选择' ).
lo_column -> set_medium_text ( '选择' ).
lo_column -> set_long_text ( '选择' ).
lo_column -> set_alignment ( if_salv_c_alignment => centered ).
lo_column -> set_cell_type ( if_salv_c_cell_type => checkbox_hotspot )."行、单元格样式
DATA ls_ctyp TYPE salv_s_int4_column .
lo_columns -> set_cell_type_column ( 'CTYP' ).
LOOP AT gt_spfli INTO gs_spfli .CASE sy \- tabix .
WHEN 4 .
"行样式（button）
CLEAR ls_ctyp .
ls_ctyp \- columnname = '' .
ls_ctyp \- value = if_salv_c_cell_type => button .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN 5 .
"行样式（hotspot）
CLEAR ls_ctyp .
ls_ctyp \- columnname = '' .
ls_ctyp \- value = if_salv_c_cell_type => hotspot .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN 6 .
"单元格样式（button + hotspot）
CLEAR ls_ctyp .
ls_ctyp \- columnname = 'COUNTRYFR' .
ls_ctyp \- value = if_salv_c_cell_type => button .
APPEND ls_ctyp TO gs_spfli \- ctyp .CLEAR ls_ctyp .
ls_ctyp \- columnname = 'COUNTRYTO' .
ls_ctyp \- value = if_salv_c_cell_type => hotspot .
APPEND ls_ctyp TO gs_spfli \- ctyp .WHEN OTHERS .
ENDCASE .
MODIFY gt_spfli FROM gs_spfli .
ENDLOOP .*------------------------------------*
go_salv -> display ( ).
**小贴士：**
• **** 可使用BC_DATA_GEN生成数据，以便查看演示效果；
• 以上纯属个人总结，如有纰漏请联系我，谢谢；
以上是今日分享，希望对你有所帮助~~~
