ABAP Cheat Sheet 补充内容
以下内容整理自 SAP 官方 ABAP 速查表（主题：ABAP SQL），作为本文的扩展补充资料。
ABAP SQL
Introduction
which is the standardized language for accessing databases.
- The main ABAP SQL keywords to read and change data are the
following:
| Keyword | Purpose |
|---|
SELECT | Reads data from data sources such as database tables and others |
INSERT | Adds rows to database tables |
UPDATE | Changes the content of rows of database tables |
MODIFY | Inserts rows into database tables or changes the content of existing rows |
DELETE | Deletes rows from database tables |
- ABAP SQL statements use the ABAP SQL interface. This interface transforms all ABAP SQL statements that access the standard database of an AS ABAP to platform-dependent SQL and forwards the results to the database system.
- Generally bear in mind the performance notes when using
ABAP SQL. The considerations there are not relevant for this cheat sheet since the focus is on syntax options.
[!NOTE] - The syntax options for the SELECT statement are extensive. Make sure that you consult the ABAP Keyword Documentation for all available options. The cheat sheet and snippets demonstrate a selection. - The code examples in the cheat sheet primarily use DDIC database tables for CRUD operations. Note that there are also CDS artifacts that allow not only reading but also creating, updating, and deleting. See this section.
Excursion: Database Tables and Views
🟢 Click to expand for more details
This section provides bullet points on database tables and views which contain persisted data. Note that the code snippets in this cheat sheet focus on database tables as data source for ABAP SQL statements.
Database tables in AS ABAP ...
- are objects of the ABAP Dictionary (DDIC). The term database table describes a physical database table in the current standard database.
- are two-dimensional matrices consisting of rows and columns.
- contain a table key, i. e. a field or a combination of fields uniquely identifies every row in a table. A primary key must exist for every database table.
- Note the concept of foreign keys in which one or more columns of a database table can be primary keys of another table. See more information here.
- have a non-nested structure
type. Plus, the definition of database tables consists of technical and semantic properties.
- can be referenced as a data type and can be accessed using ABAP SQL.
Find more information in the respective (sub)topics in the ABAP Keyword Documentation here.
Views ...
- are further ABAP Dictionary objects for grouping columns from one or more database tables, among others.
- usually realize a
join with defined join conditions.
- Note:
- Similar to database tables, the columns of such a view form a
flat structure. The view's name can be used, for example, as data types to declare data objects, too.
- The views can be accessed by ABAP SQL, especially for reading
purposes using SELECT.
"Classic" DDIC Views ...
- are the oldest form of views and are not available in ABAP Cloud.
- can be accessed by ABAP SQL for read and write operations, however, writing is only supported if the view is created with only one database table.
- can only be created in the ABAP Workbench.
"Modern" Views (since release 7.40)
views](https://help.sap.com/doc/abapdocu_latest_index_htm/latest/en-US/index.htm?file=abenexternal_view_glosry.htm "Glossary Entry") as proxies for SAP HANA views (attribute view, analytic view, calculation view)

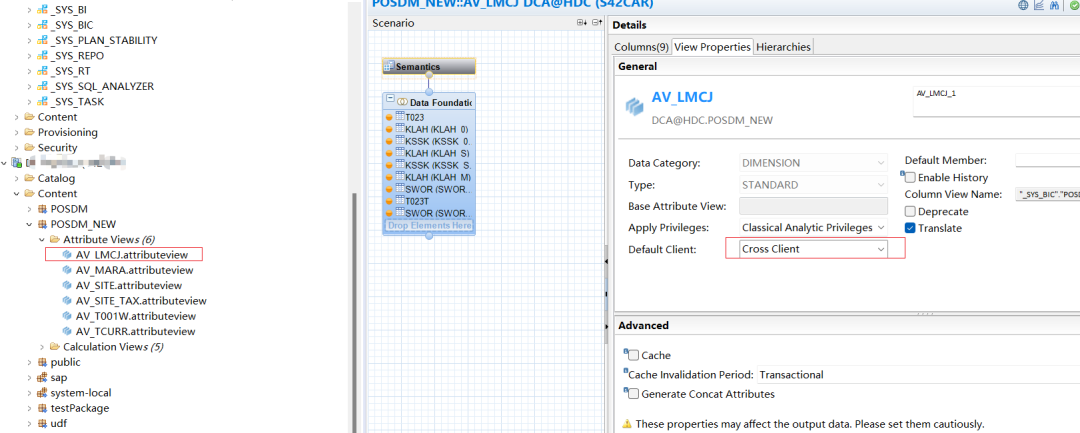

- SAP HANA Views are entities of the SAP HANA database that are
defined using the SAP HANA Studio.
- They are based on HANA-specific data types.

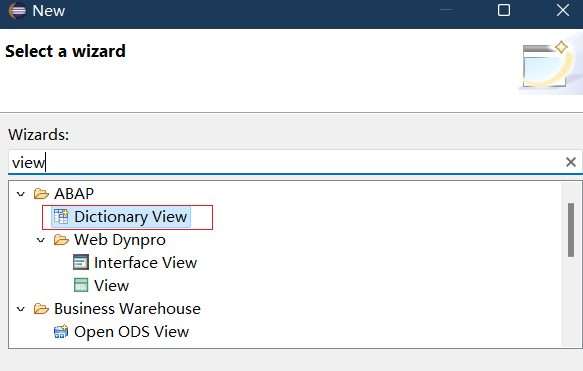

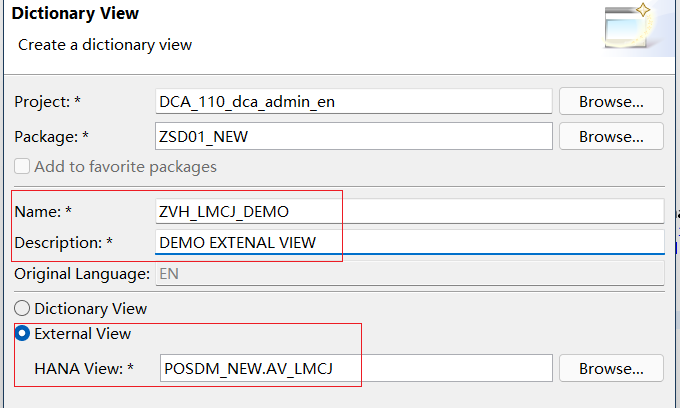

- Using external views of the ABAP dictionary, you can make those
SAP HANA views "known" to the ABAP program. In doing so, the external views can be used like classic DDIC views as structured data types and as a source for reading operations with ABAP SQL.
- To be used only if the central database of the AS ABAP is an
SAP HANA database.
- [ABAP Core Data Services (ABAP
CDS)](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abencds_view_glosry.htm "Glossary Entry") ...
- serve the purpose of defining semantically rich data models.
- have a lot more options than classic views, for example, they
support annotations. Data sources can be combined using associations, views can be defined with input parameters, and more.
- are used like a classic database view as structured data types
and used as a source for reading operations with ABAP SQL (using SELECT).
- are created using [Data Definition
Language (DDL)](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abenddl_glosry.htm "Glossary Entry") in the ADT (that is, a source code editor, in contrast to a form-based editor).
- are, in contrast to external views, supported by all database
systems (that support the ABAP CDS characteristics).
- Note that there are also CDS artifacts that allow not only reading but also creating, updating, and deleting. See this section.
⬆️ back to top
Read Operations Using SELECT
Basic Syntax
- You use ABAP SQL
SELECT statements to retrieve data from one or more data sources (such as database tables, views or internal tables). Note that many syntax examples in this cheat sheet show a selection from dbtab denoting a database table as a source. - This can be done to create a multirow or single row result set by assigning the result set to a suitable data object, i. e. you can store the multirow read result in an internal table or the single row result in a structure.
- The
SELECT statement includes several clauses that serve different purposes. - The following code snippet shows the basic syntax and mandatory clauses to be specified. Although its use is optional, a
WHERE clause should be specified to further restrict the read result. - However, there are plenty of additions and syntax variants, some of which are mentioned in the cheat sheet. In general, choose
F1 for the keywords and additions to get all the details in the ABAP Keyword Documentation.
SELECT FROM source "What data source to read from
FIELDS field_list "What columns should be read
WHERE condition "Specifies conditions on which a row/rows should be read
INTO target. "Specifies the target of the result set
⬆️ back to top
Notes on Modern SELECT Statements
- Especially in Standard ABAP, in older ABAP programs, etc. you may stumble on variants of the
SELECT syntax (i.e. differently arranged or differently specified ABAP SQL syntax) that you should no longer use (strict syntax check modes enforce the use of specific ABAP SQL syntax) and/or are not possible in ABAP for Cloud Development. - However, in certain cases, older syntax variants are still valid and usable. An example is the
SELECT list, that can also be specified using the more modern FIELDS addition. - As mentioned, choose
F1 for the keywords and additions to get all the details in the ABAP Keyword Documentation. - Further information in the context of Standard ABAP: Release-Dependent Syntax Check Modes (F1 docu for standard ABAP).
- To mention some examples of modern ABAP SQL statements.
- The
INTO clause should be placed after the other clauses. - Host variables or host expressions are required for data objects and expressions, i. e. they must be preceded by
@ or @( ... ). Host variables represent data objects that are declared in ABAP programs. They are specified in an operand position of an ABAP SQL statement. Also see the SQL Operands section. - The
SELECT list, i. e. the fields that are specified, can also be specified following the SELECT keyword before the FROM clause - without FIELDS. The following two SELECT statements are basically the same but differently arranged. The code snippets in the cheat sheet randomly use one syntax or the other.
SELECT FROM dbtab
FIELDS comp1, comp2, comp3
...
SELECT comp1, comp2, comp3
FROM dbtab
...
- Regarding the target into which data is read: Instead of using a variable that is (extra) declared beforehand, you can also make use of inline declarations, for example
... INTO TABLE @DATA(itab)., to comfortably create an appropriate variable in place. Note that in case of internal tables as targets, the resulting table is a standard table and has an empty key which might have an impact when further
processing the internal table entries. Find more information in the ABAP cheat sheet Internal Tables. The declaration operator FINAL can be used to declare immutable variables.
⬆️ back to top
Specifying the SELECT List or FIELDS Clause
- Using the
SELECT list or FIELDS clause, you define the structure of the result set. - You can do this by specifying the columns to be read from the data source individually, or by specifying
* to read all columns. - Syntax variants are possible.
- Note that you can specify the addition
SINGLE after SELECT. With SINGLE, it means the result set is a single row result set. Otherwise, it is a multirow result set, or a SELECT loop is opened. An appropriate data object must be specified in the INTO clause.
| Syntax | Notes |
|---|
SELECT <em> ...
SELECT ... FIELDS </em> ... | As outlined above, the * character defines all columns to be read from a data source (in the order specified there). |
SELECT col1, col2, col3 ...
SELECT ... FIELDS col1, col2, col3 ... | A comma-separated list of individual column names. |
SELECT data_source~col1, data_source~col2, data_source~col3 ...
SELECT ... FIELDS data_source~col1, data_source~col2, data_source~col3 ... | A comma-separated list of individual column names. Here, the name of the data source is explicitly specified and precedes the column name, separated by a tilde. |
SELECT data_source~<em> ...
SELECT ... FIELDS data_source~</em> ... | In this case, the name of the data source is followed by a tilde and the * character to specify all columns. Note that there are special conditions when using this variant. |
SELECT col1 AS al1, col2 AS al2, col3 AS al3 ...
SELECT ... FIELDS col1 AS al1, col2 AS al2, col3 AS al3 ... | Defining alias names for individual columns of the result set with AS; make sure that you use an alias name only once here. In the statement, the alias name can only be used after an ORDER BY clause; as shown further down, in some cases (e. g. when using SQL expressions) the specification of an alias name is required; setting an alias name for the data source is also possible (SELECT FROM dbtab AS alias_name ...). See the section on joins further down. |
[!NOTE] - You have plenty of options regarding the specification of the columns in the SELECT list, among them, the outlined direct specification of the column name. SQL expressions can be specified, too. See more details here and in the sections on SQL expressions further down.
"All fields
SELECT * FROM dbtab
WHERE ...
INTO ...
"Comma-separated list
SELECT col1, col2, col3
FROM dbtab
WHERE ...
INTO ...
"Comma-separated list, data source explicitly specified
SELECT dbtab~col1, dbtab~col2, col3
FROM dbtab
WHERE ...
INTO ...
"Data source explicitly specified, all fields
SELECT dbtab~*
FROM dbtab
WHERE ...
INTO ...
"Alias names
"Consider the following: You want to read data from a database table into a target data
"object but, for example, a name in the target is different. Provided that there will
"not be an issue regarding the type (conversion) when the values are assigned, you might
"specify an alias name for the database column to match a component's name in the target data object.
SELECT comp1 AS comp_a, comp2 AS comp_b, comp3 AS comp_c
FROM dbtab
WHERE ...
INTO CORRESPONDING FIELDS OF TABLE @itab.
"Alias name also possible for the data source
SELECT ds~col1, ds~col2, ds~col3
FROM dbtab AS ds
WHERE ...
INTO ...
Example code using a demo database table from the cheat sheet repository, and using the FIELDS addition.
"The examples do not specify a WHERE clause.
"All fields
SELECT FROM zdemo_abap_carr
FIELDS *
INTO TABLE @DATA(itab).
"Comma-separated list
SELECT FROM zdemo_abap_carr
FIELDS carrid, carrname, url
INTO TABLE @itab.
"Comma-separated list, data source explicitly specified
SELECT FROM zdemo_abap_carr
FIELDS zdemo_abap_carr~carrid, zdemo_abap_carr~carrname, url
INTO TABLE @itab.
"Data source explicitly specified, all fields
SELECT FROM zdemo_abap_carr
FIELDS zdemo_abap_carr~*
INTO TABLE @itab.
"Alias names
SELECT FROM zdemo_abap_carr
FIELDS carrid AS comp_a, carrname AS comp_b, url AS comp_c
INTO TABLE @DATA(itab_comp_alias).
"Alias name also possible for the data source
SELECT FROM zdemo_abap_carr AS ds
FIELDS ds~carrid, ds~carrname, ds~url
INTO TABLE @DATA(itab_db_alias).
⬆️ back to top
Specifying the FROM Clause
- The
FROM clause specifies data sources from which data is read. - The data sources include:
- DDIC database tables (which are used as data source in most of the code snippets)
- CDS entities such as CDS view entities and CDS table functions
- The executable example of the CDS View Entities cheat sheet covers
SELECT statements with CDS view entities as data sources. - Internal tables
- Note that the internal table must be specified as host variable prefixed by
@, and an alias name must be specified. - More information and code snippets: Section SELECT Queries with Internal Tables as Data Sources in the Internal Tables cheat sheet and in the ABAP Keyword Documentation
SELECT *
FROM dbtab
WHERE ...
INTO ....
SELECT FROM @itab1 AS tab
FIELDS ...
WHERE ...
INTO ....
SELECT *
FROM cds_view
WHERE ...
INTO ....
Example using cheat sheet repository objects, a demo internal table, and the FIELDS addition:
"Database table
SELECT FROM zdemo_abap_fli
FIELDS *
INTO TABLE @DATA(itab_db).
"CDS entities
"CDS view entity
SELECT *
FROM zdemo_abap_fli_ve
INTO TABLE @DATA(itab_ve).

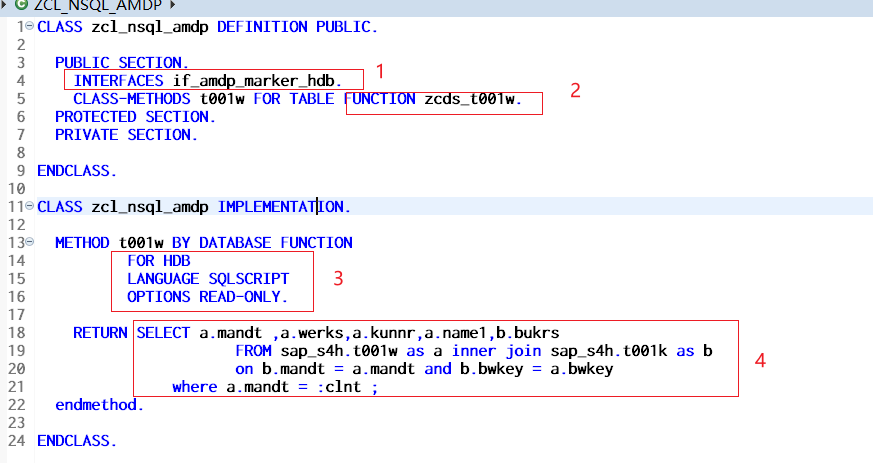

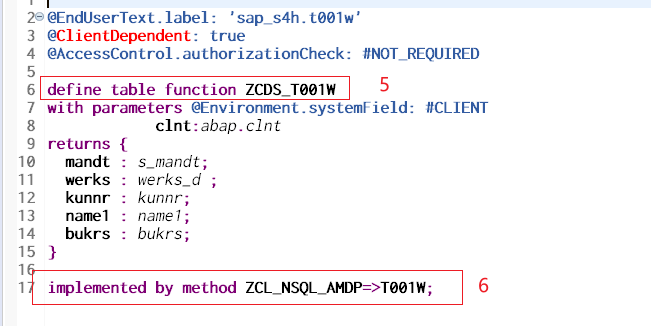

"CDS table function
SELECT FROM zdemo_abap_table_function
FIELDS *
INTO TABLE @DATA(itab_tf).
"Internal table
TYPES: BEGIN OF s,
num TYPE i,
chars TYPE c LENGTH 3,
END OF s,
t_type TYPE TABLE OF s WITH EMPTY KEY.
DATA(itab) = VALUE t_type( ( num = 1 chars = 'aaa' )
( num = 2 chars = 'bbb' )
( num = 3 chars = 'ccc' ) ).
SELECT FROM @itab AS it
FIELDS *
INTO TABLE @DATA(itab_it).
⬆️ back to top
Specifying the Target and Related Additions
This section demonstrates a selection of ABAP SQL SELECT statement patterns for specifying target-related additions to handle query results. There is a wide range of options available, some of which have already been covered above.
Syntax options regarding the target:
| Syntax | Notes |
|
... INTO TABLE ...
|
An internal table is expected for the result set. It may be declared inline to automatically have a suitable type, which also applies to ... INTO ....
SELECT FROM dbtab
FIELDS *
WHERE ...
INTO TABLE @itab.
SELECT FROM dbtab
FIELDS *
WHERE ...
INTO TABLE @DATA(itab_inl).
|
|
... INTO ...
|
Expects a structure when used without TABLE.
SELECT SINGLE comp1, comp2, comp3
FROM dbtab
WHERE ...
INTO @struc.
SELECT SINGLE comp1, comp2, comp3
FROM dbtab
WHERE ...
INTO @DATA(struc_inl).
|
|
... INTO CORRESPONDING FIELDS OF [TABLE] ...
|
- Only the content of columns for which there are identically named components in the target are assigned.
- However, if you want to read data into an existing data object and particular fields are specified in the
SELECT list or FIELDS clause, and if the addition is not specified, you might stumble on undesired results. - The target data object must contain enough components and the content of the columns are assigned to the components of the target from left to right in the order specified. The content of surplus components of the target is not changed.
- Plus, pay attention to assignment rules.
- Basic rule: Without
CORRESPONDING ..., column names do not play a role but only the position. With CORRESPONDING ..., the position of the columns does not play a role but only the name.
SELECT SINGLE comp1, comp2, comp3
FROM dbtab
WHERE ...
INTO CORRESPONDING FIELDS OF @struc.
SELECT FROM dbtab
FIELDS comp1, comp2, comp3
WHERE ...
INTO CORRESPONDING FIELDS OF TABLE @itab.
|
|
... APPENDING [CORRESPONDING FIELDS OF] TABLE ...
|
The addition INTO initializes the target object. When using the addition APPENDING, you can retain existing lines in internal tables. APPENDING is also possible with the addition CORRESPONDING FIELDS OF.
SELECT * FROM dbtab
WHERE ...
APPENDING TABLE @itab.
"APPENDING is also possible with the addition CORRESPONDING FIELDS OF
SELECT * FROM dbtab
WHERE ...
APPENDING CORRESPONDING FIELDS OF TABLE @diff_itab.
|
NEW addition: Specifying an anonymous data object as target object |
- Specifying an anonymous data object as target object using the addition
NEW - Only to be used after
INTO and not APPENDING.
"The examples declares target objects as anonymous data objects inline.
SELECT *
FROM zdemo_abap_flsch
INTO TABLE NEW @DATA(itab_ref).
SELECT SINGLE *
FROM zdemo_abap_flsch
INTO NEW @DATA(wa_ref).
|
|
... INTO ( dobj1, dob2, ... ) ...
|
Apart from reading into structures and internal tables outlined above, you can also read into individual elementary data objects. Here, the individual elementary data objects as target objects are specified in a comma-separated list (e. g. as existing host variables or declared inline) and put between a pair of parentheses.
Note:
- The comma-separated list must have the same number of elements as columns in the result set.
- The content of the columns in the result set is assigned to the data objects specified in the list from left to right in accordance with the order specified in the
SELECT list. - Note the assignment rules also in this context.
- More information here.
"Elementary data objects as target data objects
DATA id TYPE zdemo_abap_carr-carrid.
DATA name TYPE zdemo_abap_carr-carrname.
SELECT SINGLE FROM zdemo_abap_carr
FIELDS carrid, carrname
WHERE carrid = char`LH`
INTO ( @id, @name ).
"Inline declarations with DATA/FINAL and the
"creation of anonymous data objects with NEW are
"possible
SELECT SINGLE FROM zdemo_abap_carr
FIELDS carrid, carrname, url
WHERE carrid = char`LH`
INTO ( @id, @DATA(name2), NEW @FINAL(dref) ).
|
More target-related additions:
| Subject | Details/Code Snippet |
|
SINGLE addition: Retrieving a single row into a structure
|
"SINGLE addition
"Here, all fields of a single row a read. Specifying an
"asterisk * indicates that all fields are to be read.
"Alternatively, you can list all the fields separated by comma.
"Note that if the selection covers more than one row, e. g. in case
"of a non-unique WHERE clause, one of these rows is included in
"the result.
SELECT SINGLE FROM dbtab
FIELDS *
WHERE ...
INTO @struc. "Existing structure of dbtab's row type
"Retrieving a selected set of fields of a single row
SELECT SINGLE FROM dbtab
FIELDS comp1, comp2, comp3
WHERE ...
INTO @DATA(struc2). "Structure declared inline
"Alternative syntax without the FIELDS addition
"Here, the CORRESPONDING FIELDS OF addition is used. Only the content of
"columns that have identically named components in the target data object
"is assigned.
SELECT SINGLE comp1, comp2, comp3 "Selected set of fields
FROM dbtab
WHERE ...
INTO CORRESPONDING FIELDS OF @struc. "Existing structure
|
| Retrieving multiple rows into an internal table |
SELECT FROM dbtab
FIELDS * "All fields
WHERE ...
INTO TABLE @itab. "itab has an appropriate row type
"Alternative syntax without the FIELDS addition
SELECT comp1, comp2, comp3 "Selected set of fields
FROM dbtab
WHERE ...
INTO TABLE @DATA(lv_itab). "Internal table declared inline
"Selected set of fields, existing variable
"See the note on CORRESPONDING FIELDS OF above
SELECT FROM dbtab
FIELDS comp1, comp2, comp3 "Selected set of fields
WHERE ...
INTO CORRESPONDING FIELDS OF TABLE @itab.
"The addition INTO initializes the target object. When using the addition APPENDING,
"you can retain existing lines in internal tables.
SELECT * FROM dbtab
WHERE ...
APPENDING TABLE @itab.
"APPENDING is also possible with the addition CORRESPONDING FIELDS OF
SELECT * FROM dbtab
WHERE ...
APPENDING CORRESPONDING FIELDS OF TABLE @diff_itab.
|
SELECT loop: Sequentially passing multiple rows |
- A
SELECT loop can be opened if the assignment is made to a structure and the addition SINGLE is not used. The content of a result set is passed sequentially to the ABAP program. - If the row is found, the system field
sy-subrc is set to 0. - The loop must be closed using
ENDSELECT. - To terminate the loop completely, you can use the statement
EXIT. - Note: As covered further down, when using the addition
PACKAGE SIZE and storing the result in a table, a loop is opened, too.
SELECT FROM dbtab
FIELDS *
WHERE ...
INTO @struc.
IF sy-subrc = 0.
... "For example, making changes on data and adding the row to an internal table.
ENDIF.
ENDSELECT.
|
| Checking the existence of a row in a database table |
"The example uses @abap_true. Other specifications are possible, e.g. 'X'.
SELECT SINGLE @abap_true
FROM dbtab
WHERE ...
INTO @DATA(exists).
IF exists = abap_true.
...
ENDIF.
|
DISTINCT addition: Removing rows that occur more than once in a multirow result set |
- Cannot be used with the addition
SINGLE. - See more information here.
"The following example assumes that there are multiple flights
"from a city of the specified carrier with the particular destination.
"Assume there are 5 flights available from Frankfurt (cityfrom) that
"matches the WHERE clause. The first statement only returns one entry
"in the internal table, the second 5 (all).
"Using the DISTINCT addition
SELECT DISTINCT cityfrom
FROM zdemo_abap_flsch
WHERE carrid = 'LH' AND
cityto = 'NEW YORK'
INTO TABLE @DATA(itab_distinct).
"Not using the DISTINCT addition
SELECT cityfrom
FROM zdemo_abap_flsch
WHERE carrid = 'LH' AND
cityto = 'NEW YORK'
INTO TABLE @DATA(itab_no_distinct).
|
UP TO n ROWS addition: Limiting the number of returned table rows |
UP TO n ROWS
"A maximum of five rows are to be returned
"If the INTO clause is the last clause, the UP TO clause must be positioned after it.
SELECT * FROM dbtab
WHERE ...
INTO TABLE @DATA(itab_upto)
UP TO 5 ROWS.
|
OFFSET n addition: Returning only the table rows after a row with a specified count from the result set |
OFFSET n - You can only use the addition, if an
ORDER BY clause is specified.
"In the example, data of all flights are retrieved, except for the 2 flights
"with the shortest flight time.
SELECT *
FROM ztest_abap_flsch
WHERE carrid = 'LH'
ORDER BY fltime ASCENDING
INTO TABLE @DATA(itab)
OFFSET 2.
|
PACKAGE SIZE n addition: Storing the result in packages of a specified number of rows |
The addition PACKAGE SIZE n can be specified after INTO TABLE and APPENDING TABLE. A SELECT loop ist opened. After PACKAGE SIZE, the number of rows is specified (which can be a host variable, host expression or a literal of type i) denoting the number of rows to be inserted in the target object per iteration.
SELECT FROM dbtab
FIELDS comp1, comp2, comp3
WHERE ...
INTO TABLE @DATA(itab_pack) PACKAGE SIZE n.
...
ENDSELECT.
|
INDICATORS [NOT] NULL STRUCTURE addition: Specifying null indicators |
- The
INDICATORS ... addition is used to specify indicators such as the null indicator and store information about which columns of the result set contain the null value and which do not. - In the example, an appropriate target table is defined to also store information about which columns of the result set contain the null value and which do not.
- More syntax options are available for
INDICATORS .... Find more information here.
"The following example uses a left outer join to intentionally create null values. For
"this purpose, two demo database tables of the cheat sheet repository are cleared and
"populated with specific values to visualize null values.
DELETE FROM zdemo_abap_tab1.
DELETE FROM zdemo_abap_tab2.
MODIFY zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'a' char2 = 'y' )
( key_field = 2 char1 = 'b' char2 = 'z' ) ) ).
MODIFY zdemo_abap_tab2 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'a' )
( key_field = 2 char1 = 'a' )
( key_field = 3 char1 = 'b' )
( key_field = 4 ) ) ).
"Note that for the entry 'key_field = 4' no char1 value was passed.
"char1 is a shared column of the two database tables, and which is used in
"the ON condition of the join. Since there is no entry in char1 for 'key_field = 4',
"the joined values are null in that case.
"The example visualizes the null values. The INDICATORS addition is used to specify
"indicators such as the null indicator. In the example, an appropriate target table
"is defined to also store information about which columns of the result set contain
"the null value and which do not.
TYPES: BEGIN OF st4null,
BEGIN OF s2,
key_field TYPE zdemo_abap_tab2-key_field,
char2 TYPE zdemo_abap_tab1-char2,
END OF s2,
BEGIN OF nulls,
key_field TYPE c LENGTH 1,
char2 TYPE c LENGTH 1,
END OF nulls,
END OF st4null.
DATA joined_tab_w_null_ind TYPE TABLE OF st4null WITH EMPTY KEY.
SELECT tab2~key_field, tab1~char2
FROM zdemo_abap_tab2 AS tab2
LEFT OUTER JOIN zdemo_abap_tab1 AS tab1 ON tab1~char1 = tab2~char1
INTO TABLE @joined_tab_w_null_ind INDICATORS NULL STRUCTURE nulls.
*Internal table content:
*S2 NULLS
*KEY_FIELD CHAR2 KEY_FIELD CHAR2
*1 y
*KEY_FIELD CHAR2 KEY_FIELD CHAR2
*2 y
*KEY_FIELD CHAR2 KEY_FIELD CHAR2
*3 z
*KEY_FIELD CHAR2 KEY_FIELD CHAR2
*4 X
|
⬆️ back to top
Specifying Clauses to Order, Group and Set Conditions for the Result Set
| Clause | Details/Code Snippet |
GROUP BY |
GROUP BY clause: Combining groups of table rows in the result set. You can also use SQL expressions here. Multiple clause elements are separated by a comma. Find more information and syntax options in the ABAP Keyword Documentation.
Note that the GROUP BY clause requires all columns that are directly specified in the SELECT list or specified there as an argument of an SQL expression to be specified. An exception to this is aggregate functions in aggregate expressions (except grouping functions) as shown in the following example.
In the example below, the database table rows that have the same content in column comp1 are combined. The lowest and highest values in column comp2 are determined for each of these groups and placed into the combined row.
SELECT FROM dbtab
FIELDS comp1, MIN( comp2 ) AS min, MAX( comp2 ) AS max
WHERE ...
GROUP BY comp1
INTO ...
|
HAVING |
HAVING clause: Limiting the number of table rows in groups in the result by setting conditions on these rows. The rows for which a logical expression is true are inserted in the target variable. Note that HAVING can only be used together with GROUP BY.
SELECT FROM dbtab
FIELDS comp1, MIN( comp2 ) AS min, MAX( comp3 ) AS max
WHERE ...
GROUP BY comp1
HAVING comp1 LIKE '%XYZ%' AND SUM( comp4 ) > 100
INTO ...
|
ORDER BY |
ORDER BY clause: Sorting the result set by specified columns.
The following example shows the ordering of the result set based on the content of the primary key of the data source. You can also order by any columns and by explicitly specifying the sort order. There are more ordering options, for example, by using SQL expressions. Find more information here.
[!NOTE] - Not specifying ORDER BY means that the order of entries in the result set is undefined. - If ORDER BY and GROUP BY clauses are used, all columns specified after ORDER BY must also be specified after GROUP BY. - If aggregate functions are specified after SELECT, all columns that are specified after ORDER BY and that do not have an alias name for an aggregate function must also be specified after SELECT and after the GROUP BY clause which is required in this case, too.
SELECT FROM dbtab
FIELDS comp1, comp2, comp3
WHERE ...
ORDER BY PRIMARY KEY
"comp2 ASCENDING
"comp2 DESCENDING
INTO ...
|
WHERE |
WHERE clause: Restricts the number of rows that are included in the result set using logical expressions. See further information on them in the following sections.
SELECT FROM dbtab
FIELDS comp1, comp2, comp3
WHERE comp1 = 'abc'
AND comp2 < 123
INTO ...
|
⬆️ back to top
Selecting Data by Evaluating the Content of Other Tables
FOR ALL ENTRIES addition:
- Components of an internal table can be used in the
WHERE clause in logical expressions for comparisons with a column of the data source. - The logical expression is evaluated for each individual row of the internal table.
- The result set of the
SELECT statement is the union set of the result sets produced by the individual evaluations. Rows that occur more than once are removed from the result set automatically. The entire content of a row is respected. - If
FOR ALL ENTRIES is specified, there must be at least one comparison with a column of the internal table. - For more information, especially restricitions and things to pay attention to (e. g. making sure that the internal table is not initial), see here. In modern ABAP, it is advisable to use internal tables as data sources in the
SELECT statement, for example, in WHERE clauses or joins, instead of using the FOR ALL ENTRIES addition.
"Checking that table is not initial
IF ( 0 < lines( itab2 ) ).
SELECT comp1, comp2, comp3
FROM dbtab
FOR ALL ENTRIES IN @itab2 "Host variable before internal table
WHERE comp1 = @itab2-comp1 ... "Relational expression on the right side of a comparison
INTO TABLE @itab1
ENDIF.
Checking the result set of a subquery with the addition EXISTS
See possible clauses and additions of a subquery in a condition in ABAP SQL here.
The following code snippet includes a parenthesized subquery following EXISTS. Data is only selected from dbtab1 if the relational expression (WHERE EXISTS ...) is true, i. e. if the result set of the subquery contains at least one row. Note the components of the table that are referenced using a tilde.
SELECT comp1, comp2, comp3
FROM dbtab1 AS tab1
WHERE EXISTS
( SELECT comp1 FROM dbtab2
WHERE comp1 = tab1~comp1 AND comp2 = tab1~comp2 )
INTO ...
⬆️ back to top
Combining Data of Multiple Data Sources
| Subject | Details/Code Snippet |
| Using an inner join |
Inner join:
- Columns of two or more data sources in a result set can be joined.
- Result set:
- Columns of the rows in the result set of the left side with the columns of the rows in the result set of the right side are joined into a single result set.
- Contains all combinations of rows for whose columns the join condition is true.
- If there are identical column names in multiple data sources, use the [column
selector](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abentable_comp_selector_glosry.htm "Glossary Entry") ~.
SELECT a~comp1, a~comp2, b~comp3, c~comp4
FROM dbtab1 AS a
INNER JOIN dbtab2 AS b ON a~comp1 = b~comp1 AND a~comp2 = b~comp2
INNER JOIN dbtab3 AS c ON a~comp1 = c~comp1
WHERE ...
INTO ...
|
| Using an outer join |
Outer join:
a right outer join.
- Result set:
- Same result set as the inner join.
- Difference: For each selected row on the left side as
LEFT OUTER JOIN or on the right side as RIGHT OUTER JOIN, at least one row is created in the result set even if no rows on the other side meet the condition. The columns on the other side that do not meet the condition are filled with null values.
"Example for a left outer join
SELECT a~comp1, a~comp2, b~comp3,
FROM dbtab1 AS a
LEFT OUTER JOIN dbtab2 AS b ON a~comp1 = b~comp1
WHERE ...
INTO ...
|
| Merging the result sets of multiple queries into a single result set |
... using the set operator UNION. In this case, the rows of the result set of the query after UNION are inserted into the result set of the query in front of UNION.
SELECT FROM dbtab1
FIELDS ...
WHERE ...
UNION
SELECT FROM dbtab2
FIELDS ...
WHERE ...
INTO ...
|
| Returning distinct rows of a result set (1) |
... of a query specified before the INTERSECT addition that are also available in the result set of the query after the INTERSECT addition.
"If you have imported the cheat sheet repository and already run an example class to fill
"the demo tables, you can check the contents of the result sets.
SELECT zdemo_abap_flsch~carrid, zdemo_abap_carr~carrname
FROM zdemo_abap_flsch
INNER JOIN zdemo_abap_carr ON zdemo_abap_carr~carrid = zdemo_abap_flsch~carrid
ORDER BY zdemo_abap_flsch~carrid
INTO TABLE @DATA(itab_no_intersect).
"Using INTERSECT; the result set contains distinct rows
SELECT zdemo_abap_flsch~carrid, zdemo_abap_carr~carrname
FROM zdemo_abap_flsch
INNER JOIN zdemo_abap_carr ON zdemo_abap_carr~carrid = zdemo_abap_flsch~carrid
INTERSECT
SELECT carrid, carrname
FROM zdemo_abap_carr
ORDER BY carrid
INTO TABLE @DATA(itab_w_intersect).
|
| Returning distinct rows of a result set (2) |
... of a query specified before the EXCEPT addition that are not available in the result set of the query after the EXCEPT addition.
"If you have imported the cheat sheet repository and already run an example class to fill
"the demo tables, you can check the contents of the result sets.
"Selecting all carrier IDs from a database table that do not exist in an
"internal table
TYPES: ty_demo_tab TYPE TABLE OF zdemo_abap_flsch WITH EMPTY KEY.
DATA(itab) = VALUE ty_demo_tab( ( carrid = 'LH' ) ( carrid = 'LH' ) ( carrid = 'LH' )
( carrid = 'AA' ) ( carrid = 'AA' ) ).
"Selecting all carrier IDs for comparison
SELECT carrid
FROM zdemo_abap_carr
INTO TABLE @DATA(all_carrids).
"Using EXCEPT; the result set excludes those carrier IDs present in the
"internal table
SELECT carrid
FROM zdemo_abap_carr
EXCEPT
SELECT it~carrid
FROM @itab AS it
INNER JOIN zdemo_abap_carr ON zdemo_abap_carr~carrid = it~carrid
ORDER BY carrid ASCENDING
INTO TABLE @DATA(itab_w_except).
|
[!NOTE] - There are more join variants and syntax options available. See the ABAP Keyword Documentation on joins
for more information.
- There a more syntax options and contexts for UNION, INTERSECT, and EXCEPT. Find more information here. - MERGE statements allow modification operations on a data source by evaluating another data source. Find more information here.
⬆️ back to top
Common Table Expressions (CTE)
When to use Common Table Expressions (CTE):
- Whenever you need intermediate results in a
SELECT
statement and especially if you need them more than once.
- You get the option of selecting directly from a subquery (
SELECT FROM subquery), which is not possible in ABAP SQL.
How they work:
WITH introduces the definition of CTEs.
- Each CTE creates a tabular result set in a
subquery.
- The result set of such a CTE can then be used in subsequent queries
as data source; CTEs can be considered as temporary views, which only exist for the duration of the database access.
- The CTEs (at least one) are then used in a final [main
query](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abenmainquery_glosry.htm "Glossary Entry"), i. e. a SELECT statement accesses the result of the expressions.
Setup of a statement with CTE:
- Introductory keyword
WITH - A comma-separated list with at least one definition of a CTE
- Each CTE has a unique name with an initial
+ character - An optional list of column names, which should be used in the
result set, within parentheses
AS followed by a subquery with SELECT which
creates the tabular result set of the CTE
- A closing main query with
SELECT in which the previous
CTEs are to be used as data source
- If a
SELECT loop is opened and data is written into a work
area in the closing main query, the loop must be closed with ENDWITH. (which fulfills the same task as ENDSELECT.).
[!NOTE] - Each CTE must be used at least once, either in another CTE or in the
main query. The main query must access at least one CTE.
- The result set of a CTE never has a [client
column](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abenclient_column_glosry.htm "Glossary Entry").
- See more information in this topic
and further options and additions when using CTEs in the subtopics.
Example: The result sets of both common table expressions +connections and +sum_seats are merged in the subquery of the CTE +result in a join expression. An explicit name list assigns names to the resulting columns. These names are used in the main query to sort the results. For each flight connection of the selected airline, the total number of occupied seats is stored in the internal table.
WITH
+connections AS (
SELECT zdemo_abap_flsch~carrid, carrname, connid, cityfrom, cityto
FROM zdemo_abap_flsch
INNER JOIN zdemo_abap_carr
ON zdemo_abap_carr~carrid = zdemo_abap_flsch~carrid
WHERE zdemo_abap_flsch~carrid BETWEEN 'AA' AND 'JL' ),
+sum_seats AS (
SELECT carrid, connid, SUM( seatsocc ) AS sum_seats
FROM zdemo_abap_fli
WHERE carrid BETWEEN 'AA' AND 'JL'
GROUP BY carrid, connid ),
+result( name, connection, departure, arrival, occupied ) AS (
SELECT carrname, c~connid, cityfrom, cityto, sum_seats
FROM +connections AS c
INNER JOIN +sum_seats AS s
ON c~carrid = s~carrid AND c~connid = s~connid )
SELECT *
FROM +result
ORDER BY name, connection
INTO TABLE @DATA(result).
⬆️ back to top
SQL Conditions
You can formulate conditions in ABAP SQL statements, i. e. logical expressions, especially in the WHERE clause to restrict the result. Note that without a WHERE clause, all rows are respected for the operation.
Find more details and examples in the WHERE Conditions cheat sheet.
Among the syntax options are:
... a = b ... / ... a EQ b ... ... a <> b ... / ... a NE b ... ... a < b ... / ... a LT b ...... a > b ... / ... a GT b ... ... a <= b ... / ... a LE b ... ... a >= b ... / ... a GE b ...... AND ... / ... OR ... / ... ( ... ) ...... a [=|<>|>|<|...] [ALL|ANY|SOME] ( SELECT ... ) ...... a [NOT] BETWEEN b AND c ...... a [NOT] LIKE b [ESCAPE c] ...... a IS [NOT] INITIAL ...... a [NOT] IN (b, c, ...)...... a [NOT] IN ( SELECT ... ) ...... ( a, b, ... ) IN ( ( d, e, ... ) ( f, g, ...) ... ) ...... ( a, b, ... ) IN ( SELECT ... ) ...... a [NOT] IN @ranges_table ...... EXISTS ( SELECT ... ) ...... a IS [NOT] NULL ...... (dynamic_where_clause) ...
⬆️ back to top
SQL Operands
operands](https://help.sap.com/doc/abapdocu_cp_index_htm/CLOUD/en-US/index.htm?file=abensql_operand_glosry.htm "Glossary Entry") are elementary operands in ABAP SQL statements
- Can be database table or view columns, a
literal, host variables (i. e. global or local data objects escaped using @: @dobj) or host expressions (@( ... ))
- Regarding literals: They are not prefixed with the escape
character @. The literals can be typed (using the type name and content within a pair of backquotes: char\abc\) with built-in ABAP Dictionary types or untyped. See the Typed Literals section further down.
- Regarding host expressions: Structures and internal tables are
possible as host expressions for statements modifying the content of database tables as shown further down.
here.
[!NOTE] Questions about when to use what, what is possible in which contexts and positions, is beyond the scope of this cheat sheet. Check the details in the
respective topics in the ABAP Keyword Documentation. Find a general overview of important operand positions in ABAP SQL here. Due to the rich variety of options, the cheat sheet covers a selection.
Example demonstrating possible operands:
DATA number TYPE i VALUE 3.
SELECT FROM zdemo_abap_flsch
FIELDS
"Specifies a column of a data source directly using its name
cityfrom,
"Column selector ~ can be used to prefix every specified column.
"Here, it is optional. It is non-optional, e. g., if multiple data
"sources in an ABAP SQL statement are edited and the column name
"is not unique.
zdemo_abap_flsch~cityto,
'Lufthansa' AS name, "Untyped literal
char`X` AS flag, "Typed literal
@number AS num, "Host variable
@( cl_abap_context_info=>get_system_date( ) ) as date "Host expression
WHERE carrid = 'LH' "Untyped literal
AND countryfr = char`DE` "Typed literal
"Data object created inline and escaped with @
INTO TABLE @DATA(it)
"The following clause shows all options having the same effect
UP TO 3 ROWS. "Untyped numeric literal
"UP TO int4`3` ROWS. "Typed numeric literal
"UP TO @number ROWS. "Host variable
"UP TO @( 10 - 7 ) ROWS. "Host expression
⬆️ back to top
SQL Expressions
- SQL expressions can be specified in various positions of ABAP SQL statements.
- They are passed to the database system for evaluation.
- For example, SQL expressions can be specified as columns in the
SELECT list as demonstrated in most of the following examples.
- Find information on more possible positions and general information
on SQL expressions here and the subtopics there.
[!NOTE] You can enclose SQL expressions in parentheses. ``abap SELECT SINGLE carrid, "SQL expressions enclosed in parenthesis in the context "of arithmetic expressions impacting the prioriry of "calculations ( 1 + 2 ) <em> ( 3 + 4 ) </em> ( 5 + 6 ) AS calc_w_par, "231 1 + 2 <em> 3 + 4 </em> 5 + 6 AS calc_no_par "33 FROM zdemo_abap_fli WHERE carrid = 'AA' INTO @DATA(using_parentheses). ``
⬆️ back to top
Elementary SQL Expressions
- An elementary expression represents one of the four mentioned
operands above: A value from the data source (i.e. the column name), values from an ABAP program passed to the database (literal, host variable or host expression).
- As an example, see the
SELECT list in the example above. - See more information
here.
⬆️ back to top
Arithmetic Expressions
Arithmetic expressions perform arithmetic calculations using the operators +, -, *, /.
SELECT SINGLE
carrid,
"Arithmethic expressions
"operators + - *
"Note that / is not allowed in integer expressions as the one below
( 1 + 2 ) * 3 AS calc,
"/ used in an expression using type adjustment in ABAP SQL.
"A cast expression converts the value of the operands to the
"specified dictionary type. The result is a representation of the
"source value in the specified type.
CAST( 1 AS D34N ) / CAST( 2 AS D34N ) AS ratio
FROM zdemo_abap_carr
WHERE carrid = 'AA'
INTO @DATA(arithmetic_sql_expr).
⬆️ back to top
Cast Expressions
SELECT SINGLE
carrid,
"A cast expression converts the value of the operands to the
"specified dictionary type. The result is a representation of the
"source value in the specified type.
CAST( 1 AS D34N ) / CAST( 2 AS D34N ) AS ratio,
CAST( connid AS INT4 ) AS connidnum,
CAST( @( cl_abap_context_info=>get_system_date( ) ) AS CHAR ) AS dat
FROM zdemo_abap_fli
WHERE carrid = 'AA'
INTO @DATA(cast_expr).
⬆️ back to top
String Expressions
String expressions use the operator && to concatenate character strings.
SELECT SINGLE
carrid,
"String expression using && to concatenate two character strings;
"the result of the concatenation must not be longer than
"255 characters.
carrid && char`_` && carrname AS concat
FROM zdemo_abap_carr
WHERE carrid = 'AA'
INTO @DATA(string_expr).
⬆️ back to top
Case Expressions
- Case expressions carry out either a simple (comparison of the values of a dedicated operand) or complex (searched case; evaluation of multiple logical expressions) case distinction.
- Not specifying
ELSE means that the result is the null value. The null value can be specified explicitly by the null expression NULL.
SELECT SINGLE
carrid,
"Simple case distinction
"The expression compares the values of an operand with other
"operands. Result: The first operand after THEN for which the
"comparison is true. If no matches are found, the result specified
"after ELSE is selected.
CASE currcode
WHEN 'EUR' THEN 'A'
WHEN 'USD' THEN 'B'
ELSE 'C'
END AS case_simple,
"Complex case distinction
"The expression evaluates logical expressions. Result: The first
"operand after THEN for which the logical expression is true. If no
"logical expressions are true, the result specified after ELSE is
"selected.
CASE WHEN length( carrname ) <= 5 THEN 'small'
WHEN length( carrname ) BETWEEN 6 AND 10 THEN 'mid'
WHEN length( carrname ) BETWEEN 11 AND 15 THEN 'large'
ELSE 'huge'
END AS case_complex
FROM zdemo_abap_carr
WHERE carrid = 'AA'
INTO @DATA(case_expr).
⬆️ back to top
Aggregate Expressions
and aggregate the values of multiple rows of the result set of a query into a single value
- The example shows a selection. Find more information
here.
Example:
"The example shows a selection of available functions
SELECT
carrid,
"Average value of the content of a column in a row set
AVG( fltime ) AS fltime1,
"AVG with data type specification for the result
AVG( fltime AS DEC( 14,4 ) ) AS fltime2,
"Maximum value of the results in a row set
MAX( fltime ) AS max,
"Minimum value
MIN( fltime ) AS min,
"Sum of the results in a row set.
SUM( fltime ) AS sum,
"Returns the number of rows in a row set.
"The following two have the same meaning.
COUNT( * ) AS count2,
COUNT(*) AS count3,
"Chains the results in a row set.
"An optional separator can be specified
STRING_AGG( airpfrom, ', ' ) AS string_agg
FROM zdemo_abap_flsch
WHERE carrid = 'LH'
GROUP BY carrid
INTO TABLE @DATA(agg_exp).
⬆️ back to top
Window Expressions
How window expressions work:
- Define a subset of the result set (i. e. the
"window") of a database query that implements ABAP SQL
which evaluates the rows of the window and which can, for example, be an aggregate function like AVG to determine the average value - to the result set
- I. e. a window is constructed by the rows of the result set for
which all the window functions have the same result; a value is then determined for the rows of a window
Setup of a statement with window expressions:
- Window function, e. g. an aggregate function like
AVG,
followed by OVER( ... ) (the content in the parentheses defines the "window")
- The content in the parentheses can contain the following additions:
- Optional
PARTITION BY: Defines the windows using a
comma-separated list of SQL expressions; the window function is calculated for the rows of this window; note that if the addition is not specified, the window comprises all rows of the result set
- Optional
ORDER BY: Introduces both an order (you can
use ASCENDING and DESCENDING) and a frame (as outlined below) within the current window, which further restricts the rows for which the window function is calculated
- A window frame, which stands for a subset of rows inside a
window, can optionally be defined if ORDER BY is specified; there are 3 options to define the starting and ending frame boundaries (see the example)
See more information on window expressions and the syntax here.
Examples:
"Example 1: A simple window is constructed in the OVER clause;
"window functions - here aggregate functions - are applied
SELECT carrid, currency,
SUM( paymentsum ) OVER( PARTITION BY carrid ) AS sum,
AVG( price AS DEC( 14,2 ) ) OVER( PARTITION BY carrid ) AS avg,
MAX( price ) OVER( PARTITION BY carrid ) AS max
FROM zdemo_abap_fli
ORDER BY carrid
INTO TABLE @DATA(win).
"Example 2:
SELECT carrid, currency, fldate,
"Sorts the rows by some columns and counts the number of rows from
"the first row of the window to the current row.
COUNT( * ) OVER( ORDER BY currency, fldate
ROWS BETWEEN
"UNBOUNDED PRECEDING: frame starts at the first row of the window
UNBOUNDED PRECEDING
"CURRENT ROW: determines starting or ending at the current row; here, it ends
AND CURRENT ROW ) AS count1,
"If no window frame is used, the default window frame is
"BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW,
"i. e. the result of count1 equals the result of count2.
COUNT( * ) OVER( ORDER BY currency, fldate ) AS count2,
"Sorts the rows by some columns and counts the number of rows from
"the current row to the last row of the window.
"The result is reverse numbering.
COUNT( * ) OVER( ORDER BY currency, fldate
ROWS BETWEEN CURRENT ROW
UNBOUND FOLLOWING:
"Determines the ending frame boundary, this addition specifies the last row of the window
AND UNBOUNDED FOLLOWING ) AS count_reverse,
"Sorts the rows by some columns and calculates the rolling averages
"of a subset of rows from column price. The subset consists of the
"current row plus one preceding and one following row. Another use
"case as below example that uses prices would be that, for example,
"you can calculate the 3-day-average temperature for every day from
"a list of temperature data.
AVG( price AS DEC( 14,2 ) ) OVER( ORDER BY currency, fldate
ROWS BETWEEN
"n PRECEDING: for both start and end of frame; frame to start/end n rows above the current row
1 PRECEDING
"n FOLLOWING: for both start and end of frame; frame to start/end n rows beneath the current row
AND 1 FOLLOWING ) AS avg
FROM zdemo_abap_fli
INTO TABLE @DATA(result).
⬆️ back to top
Null Expressions
The null value is represented by the NULL operand in ABAP SQL statements. Find more information here.
SELECT
carrid,
carrname,
"The type of the null value is determined by the context.
"When the null value is passed to the internal table,
"it is converted to the initial value. In the first case,
"it is ' '. In the second case, it is 0..
CASE WHEN length( carrname ) > 12 THEN char`X`
ELSE NULL
END AS long_name,
CAST( NULL AS INT1 ) AS null_val
FROM zdemo_abap_carr
INTO TABLE @DATA(null_expr).
⬆️ back to top
Built-In SQL Functions
- Built-in SQL functions can be called in ABAP SQL.
- The result is a value with the associated dictionary type.
- The arguments of the functions can cover one or more SQL expressions.
- For all available functions and for more information, refer to this topic in the ABAP Keyword Documentation and the subtopics.
- The functions are also covered in other cheat sheets such as the Built-In Functions cheat sheet.
Numeric Functions
Numeric functions
SELECT SINGLE
carrname,
"Division, result rounded to an integer
"Result: 2
div( 4, 2 ) AS div,
"Division, 3rd argument: result is rounded to the specified
"number of decimals
"Result: 0.33
division( 1, 3, 2 ) AS division,
"Result is rounded to first greater integer
"Result: 2
ceil( decfloat34`1.333` ) AS ceil,
"Result is the remainder of division
"Result: 1
mod( 3, 2 ) AS mod,
"Result: Largest integer value not greater than the specified value
"Result: 1
floor( decfloat34`1.333` ) AS floor,
"Returns the absolute number
"Result: 2
abs( int4`-2` ) AS abs,
"Result is rounded to the specified position after the decimal separator
"Result: 1.34
round( decfloat34`1.337`, 2 ) AS round
FROM zdemo_abap_carr
WHERE carrid = 'AA'
INTO @DATA(numeric_functions).
⬆️ back to top
String Functions
String functions
SELECT SINGLE
carrid, "LH
carrname, "Lufthansa
url, "http://www.lufthansa.com
"Concatenates strings, ignores trailing blanks
"Result: LHLufthansa
concat( carrid, carrname ) AS concat,
"Concatenates strings, number denotes the blanks that are inserted
"Result: LH Lufthansa
concat_with_space( carrid, carrname, 1 ) AS concat_with_space,
"First letter of a word -> uppercase, all other letters -> lowercase;
"note that a space and other special characters means a new word.
"Result: Http://Www.Lufthansa.Com
initcap( url ) AS initcap,
"Position of the first occurrence of the substring specified
"Result: 6
instr( carrname,'a' ) AS instr,
"String of length n starting from the left of an expression;
"trailing blanks are ignored
"Result: Luft
left( carrname, 4 ) AS left,
"Number of characters in an expression, trailing blanks are ignored
"Result: 24
length( url ) AS length,
"Checks if expression contains a PCRE expression;
"case-sensitive by default (case_sensitive parameter can be specified)
"Notes on the result: 1 = found, 0 = not found
"Result: 1
like_regexpr( pcre = '\..', "Period that is followed by any character
value = url ) AS like_regex,
"Returns position of a substring in an expression,
"3rd parameter = specifies offset (optional)
"4th parameter = determines the number of occurrences (optional)
"Result: 9
locate( carrname, 'a', 0, 2 ) AS locate,
"Searches a PCRE pattern, returns offset of match;
"many optional parameters: occurrence, case_sensitive, start, group
"Result: 21
locate_regexpr( pcre = '\..', "Period followed by any character
value = url,
occurrence = 2 ) "2nd occurrence in the string
AS locate_regexpr,
"Searches a PCRE pattern, returns offset of match + 1;
"many optional parameters: occurrence, case_sensitive, start, group
"Result: 2
locate_regexpr_after( pcre = '.', "Any character
value = url,
occurrence = 1 ) AS locate_regexpr_after,
"Removes leading characters as specified in the 2nd argument,
"trailing blanks are removed
"Result: ufthansa
ltrim( carrname, 'L' ) AS ltrim,
"Counts all occurrences of found PCRE patterns
"Result: 2
occurrences_regexpr( pcre = '\..', "Period that is followed by any character
value = url ) AS occ_regex,
"Replaces the 2nd argument with the 3rd in an expression
"Result: Lufth#ns#
replace( carrname, 'a', '#' ) AS replace,
"Replaces a found PCRE expression;
"more parameters possible: occurrence, case_sensitive, start
"Result: http://www#ufthansa#om
replace_regexpr( pcre = '\..', "Period that is followed by any character
value = url,
with = '#' ) AS replace_regex,
"Extracts a string with the length specified starting from the right
"Result: hansa
right( carrname, 5 ) AS right,
"Expands string to length n (2nd argument); trailing blanks produced
"are replaced by the characters from the (3rd) argument
"Note that if n is less than the string, the expression is truncated
"on the right.
"Result: Lufthansa###
rpad( carrname, 12, '#' ) AS rpad,
"All trailing characters that match the character of the 2nd argument
"are removed; trailing blanks are removed, too
"Result: Lufthans
rtrim( carrname, 'a' ) AS rtrim,
"Returns a substring; 2nd argument = position from where to start;
"3rd argument: length of the extracted substring
"Result: fth
substring( carrname, 3, 3 ) AS substring,
"Searches for a PCRE expression and returns the matched substring
"More parameters possible: occurrence, case_sensitive, start, group
"Result: .lu
substring_regexpr( pcre = '\...', "Period that is followed by any two characters
value = url ) AS substring_regexpr,
"All lower case letters are transformed to upper case letters
"Result: LUFTHANSA
upper( carrname ) AS upper
FROM zdemo_abap_carr
WHERE carrid = 'LH'
INTO @DATA(string_functions).
⬆️ back to top
coalesce Function
coalesce
"The null value is a special value that is returned by a database. It indicates an
"undefined value or result. Note that, in ABAP, there are no special null values. Do
"not confuse the null value with a type-dependent initial value. When using SELECT
"statements to read data, null values can be produced by, for example, outer joins.
"When the null values are passed to a data object, they are transformed to the
"type-dependent initial values. For more information, refer to the ABAP Keyword Documentation.
"The following example uses a left outer join to intentionally create null values. For
"this purpose, two demo database tables of the ABAP cheat sheet repository are cleared and
"populated with specific values to visualize null values.
DELETE FROM zdemo_abap_tab1.
DELETE FROM zdemo_abap_tab2.
MODIFY zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'a' char2 = 'y' )
( key_field = 2 char1 = 'b' char2 = 'z' ) ) ).
MODIFY zdemo_abap_tab2 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'a' )
( key_field = 2 char1 = 'a' )
( key_field = 3 char1 = 'b' )
( key_field = 4 ) ) ).
"Note that for the entry 'key_field = 4' no char1 value was passed.
"char1 is a shared column of the two database tables, and which is used in
"the ON condition of the join. Since there is no entry in char1 for 'key_field = 4',
"the joined values are null in that case.
"The coalesce function is used to replace null values produced by an outer join with
"a different value.
SELECT tab2~key_field,
coalesce( tab1~char1, '-' ) AS coalesced1,
coalesce( tab1~char2, '#' ) AS coalesced2,
"A coalesce function is a short form of a complex
"case distinction such as the following:
CASE WHEN tab1~char1 IS NOT NULL THEN tab1~char1
ELSE '?'
END as coalesced3
FROM zdemo_abap_tab2 AS tab2
LEFT OUTER JOIN zdemo_abap_tab1 AS tab1 ON tab1~char1 = tab2~char1
INTO TABLE @DATA(join_w_null).
*Example table content
*KEY_FIELD COALESCED1 COALESCED2 COALESCED3
*1 a y a
*2 a y a
*3 b z b
*4 - # ?
⬆️ back to top
Conversion Functions
Type conversion functions:
| Function | Notes | Code Snippet |
|
bintohex( ... )
|
Converts byte strings (type raw; mapped to ABAP type x) to character strings (type char)
|
The code snippet implements the following:
- To have a self-contained example, a demo internal table with elementary line type (byte-like type
x length 10) is created. - The table is filled with demo data.
- An ABAP SQL
SELECT statement that includes the bintohex function retrieves data from the internal table. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma. - Runtime Type Identification (RTTI) (find more information in the Dynamic Programming cheat sheet) is used to demonstrate that the type of the
tline (the alias name for table_line) is character-like.
TYPES x10 TYPE x LENGTH 10.
TYPES ty_raw_tab TYPE TABLE OF x10 WITH EMPTY KEY.
DATA(raw_tab) = VALUE ty_raw_tab( ( CONV x10( '68656C6C6F' ) )
( CONV x10( '776F726C64' ) )
( CONV x10( '41424150' ) ) ).
SELECT bintohex( table_line ) AS tline
FROM @raw_tab AS tab
INTO TABLE @DATA(conv_to_blob_tab) ##ITAB_DB_SELECT.
DATA(tdo_itab) = CAST cl_abap_tabledescr( cl_abap_typedescr=>describe_by_data( conv_to_blob_tab ) ).
DATA(table_components_itab) = CAST cl_abap_structdescr( tdo_itab->get_table_line_type( ) )->components.
DATA(text_line_type_kind) = table_components_itab[ name = 'TLINE' ]-type_kind.
ASSERT text_line_type_kind = cl_abap_typedescr=>typekind_char.
|
|
hextobin( ... )
|
Converts character strings (type char or numc) to byte strings (type raw; mapped to ABAP type x)
|
The code snippet implements the following:
- To have a self-contained example, a demo internal table with elementary line type (character-like type
c length 10) is created. - The table is filled with demo data.
- An ABAP SQL
SELECT statement that includes the hextobin function retrieves data from the internal table. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma. - RTTI is used to demonstrate that the type of the
tline (the alias name for table_line) is x.
TYPES c10 TYPE c LENGTH 10.
TYPES ty_c_tab TYPE TABLE OF c10 WITH EMPTY KEY.
DATA(c_tab) = VALUE ty_c_tab( ( '68656C6C6F' )
( '776F726C64' )
( '41424150' ) ).
SELECT hextobin( table_line ) AS tline
FROM @c_tab AS tab
INTO TABLE @DATA(hextobin_tab) ##ITAB_DB_SELECT.
DATA(tdo_itab) = CAST cl_abap_tabledescr( cl_abap_typedescr=>describe_by_data( hextobin_tab ) ).
DATA(table_components_itab) = CAST cl_abap_structdescr( tdo_itab->get_table_line_type( ) )->components.
DATA(text_line_type_kind) = table_components_itab[ name = 'TLINE' ]-type_kind.
ASSERT text_line_type_kind = cl_abap_typedescr=>typekind_hex.
|
|
to_blob( ... )
|
Converts from a byte field (type raw; mapped to ABAP type x) to a byte string (a blob, Binary Large Object; type rawstring; mapped to ABAP type xstring).
|
The code snippet implements the following:
- To have a self-contained example, a demo internal table with elementary line type (byte-like type,
x length 10) is created. - The table is filled with demo data.
- An ABAP SQL
SELECT statement that includes the to_blob function retrieves data from the internal table. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma. - RTTI is used to demonstrate that the type of the
tline (the alias name for table_line) is xstring.
TYPES x10 TYPE x LENGTH 10.
TYPES ty_raw_tab TYPE TABLE OF x10 WITH EMPTY KEY.
DATA(raw_tab) = VALUE ty_raw_tab( ( CONV x10( '68656C6C6F' ) )
( CONV x10( '776F726C64' ) )
( CONV x10( '41424150' ) ) ).
SELECT to_blob( table_line ) AS tline
FROM @raw_tab AS tab
INTO TABLE @DATA(conv_to_blob_tab) ##ITAB_DB_SELECT.
DATA(tdo_itab) = CAST cl_abap_tabledescr( cl_abap_typedescr=>describe_by_data( conv_to_blob_tab ) ).
DATA(table_components_itab) = CAST cl_abap_structdescr( tdo_itab->get_table_line_type( ) )->components.
DATA(text_line_type_kind) = table_components_itab[ name = 'TLINE' ]-type_kind.
ASSERT text_line_type_kind = cl_abap_typedescr=>typekind_xstring.
|
|
to_clob( ... )
|
- Converts a fixed-length character string (type
char or sstring) to a clob (character large object; type string) - The argument specified in the parentheses can be a table column, literal, host variable/constant, or an SQL expression
|
The example class, executable with F9 in ADT, implements the following:
- To have a self-contained example, a demo internal table is created. Among others, it includes the
text component that is of type c with length 255. - The table is filled with lots of data.
text receives random strings of a random length (1 - 255) to have data to work with. - An ABAP SQL
SELECT statement that includes the to_clob function retrieves data from the internal table. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma. - The
to_clob has an SQL expression as argument. In this case, it is an aggregate expression with STRING_AGG, which aggregates the value of multiple rows into a single value. - Using RTTI, it is demonstrated that the type of the
text_line component (the alias name for text) is string. It is then evaluated how many characters the random strings contain. The example is set up to show that the aggregated string exceeds 1333 characters, which is the maximum length of fields of type sstring.
CLASS zcl_demo_abap DEFINITION
PUBLIC
FINAL
CREATE PUBLIC .
PUBLIC SECTION.
INTERFACES if_oo_adt_classrun.
METHODS get_random_string IMPORTING VALUE(length) TYPE i OPTIONAL
RETURNING VALUE(str) TYPE string.
TYPES: BEGIN OF demo_struct,
num TYPE i,
uuid TYPE sysuuid_x16,
text TYPE c LENGTH 255,
END OF demo_struct.
TYPES ty_demo_tab TYPE SORTED TABLE OF demo_struct WITH UNIQUE KEY num uuid.
METHODS get_random_table_content IMPORTING VALUE(table_entry_count) TYPE i OPTIONAL
RETURNING VALUE(demo_tab) TYPE ty_demo_tab.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_demo_abap IMPLEMENTATION.
METHOD if_oo_adt_classrun~main.
DATA(random_table) = get_random_table_content( 500 ).
SELECT num, to_clob( STRING_AGG( text, ',' ) ) AS text_line
FROM @random_table AS tab
GROUP BY num
ORDER BY num
INTO TABLE @DATA(aggregated_data) ##ITAB_DB_SELECT.
"Checking the type of the text_line component using RTTI
DATA(tdo_itab) = CAST cl_abap_tabledescr( cl_abap_typedescr=>describe_by_data( aggregated_data ) ).
DATA(table_components_itab) = CAST cl_abap_structdescr( tdo_itab->get_table_line_type( ) )->components.
DATA(text_line_type_kind) = table_components_itab[ name = 'TEXT_LINE' ]-type_kind.
IF text_line_type_kind = cl_abap_typedescr=>typekind_string.
out->write( `The text_line component is of type string.` ).
out->write( |\n| ).
ENDIF.
DATA(lines_w_more_than_1333) = REDUCE i( INIT int = 0
FOR line IN aggregated_data
NEXT int = COND #( WHEN strlen( line-text_line ) > 1333 THEN int + 1 ELSE int ) ).
out->write( |{ lines_w_more_than_1333 } out of { lines( aggregated_data ) } lines of the internal table have a text_line value exceeding 1333 characters.| ).
out->write( |\n| ).
ENDMETHOD.
METHOD get_random_string.
IF length IS NOT SUPPLIED OR length > 255.
length = cl_abap_random_int=>create( seed = cl_abap_random=>seed( )
min = 1
max = 255 )->get_next( ).
ENDIF.
DATA(characters) = `aAbBcCdDeEfFgGhHiIjJkKlLmMnNoOpPqQrRsStTuUvVwWxXyYzZ1234567890`.
DATA(off) = strlen( characters ) - 1.
DO length TIMES.
DATA(random_offset) = cl_abap_random_int=>create( seed = cl_abap_random=>seed( )
min = 0
max = off )->get_next( ).
TRY.
str &&= characters+random_offset(1).
CATCH cx_sy_range_out_of_bounds.
ENDTRY.
ENDDO.
ENDMETHOD.
METHOD get_random_table_content.
IF table_entry_count IS NOT SUPPLIED OR table_entry_count > 1000.
table_entry_count = cl_abap_random_int=>create( seed = cl_abap_random=>seed( )
min = 1
max = 1000 )->get_next( ).
ENDIF.
"Example implementation: For the string aggregation in the SELECT statement,
"multiple lines should be created with the same key value in 'num'.
DATA(value4num) = 1.
DO table_entry_count TIMES.
IF sy-index MOD 25 = 0.
value4num += 1.
ENDIF.
INSERT VALUE #( num = value4num
uuid = xco_cp=>uuid( )->value
text = get_random_string( ) ) INTO TABLE demo_tab.
ENDDO.
ENDMETHOD.
ENDCLASS.
|
|
unit_conversion( ... )
|
Converts units for a value passed to the quantity parameter
|
The code snippet implements the following:
- To have a self-contained example, a demo internal table with elementary line type (packed number,
p length 16 decimals 14) is created. - The table is filled with demo data.
- Two ABAP SQL
SELECT statements are included that specify the unit_conversion function. Data is retrieved from the internal table and converted. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma. - The example covers the conversion of miles to kilometers and vice versa.
TYPES p_len16dec14 TYPE p LENGTH 16 DECIMALS 14.
TYPES ty_plen16dec14_tab TYPE TABLE OF p_len16dec14 WITH EMPTY KEY.
DATA(p_tab) = VALUE ty_plen16dec14_tab( ( CONV p_len16dec14( '1' ) )
( CONV p_len16dec14( '5.7' ) )
( CONV p_len16dec14( '4.2' ) )
( CONV p_len16dec14( '25.78' ) ) ).
SELECT unit_conversion( quantity = table_line,
source_unit = unit`MI`,
target_unit = unit`KM` ) AS miles_to_km
FROM @p_tab AS tab
INTO TABLE @DATA(unit_conv_mi2km_tab) ##ITAB_DB_SELECT.
SELECT unit_conversion( quantity = miles_to_km,
source_unit = unit`KM`,
target_unit = unit`MI` ) AS km_to_miles
FROM @unit_conv_mi2km_tab AS tab
INTO TABLE @DATA(unit_conv_km2mi_tab) ##ITAB_DB_SELECT.
|
|
currency_conversion( ... )
|
- Converts currencies for a value passed to the
amount parameter - Multiple optional parameters can be specified (excluding
client in ABAP for Cloud Development)
|
The code snippet implements the following:
- To have a self-contained example, a demo internal table with elementary line type (packed number,
p length 16 decimals 2) is created. - The table is filled with demo data.
- An ABAP SQL
SELECT statement that includes the currency_conversion function retrieves data from the internal table and converts currency values from Euro to US dollars. Note that a warning would be displayed that the SELECT command is executed on the database. The warning is suppressed with a pragma.
TYPES p_len16dec2 TYPE p LENGTH 16 DECIMALS 2.
TYPES ty_plen16dec2_tab TYPE TABLE OF p_len16dec2 WITH EMPTY KEY.
DATA(p_tab) = VALUE ty_plen16dec2_tab( ( CONV p_len16dec2( '1' ) )
( CONV p_len16dec2( '5.7' ) )
( CONV p_len16dec2( '4.2' ) )
( CONV p_len16dec2( '25.78' ) ) ).
SELECT currency_conversion( amount = table_line,
source_currency = char`EUR`,
target_currency = char`USD`,
exchange_rate_date = @( cl_abap_context_info=>get_system_date( ) ) ) AS eur2usd
FROM @p_tab AS tab
INTO TABLE @DATA(curr_unit_conv_eur2usd) ##ITAB_DB_SELECT.
|
|
as_geo_json( ... )
|
Converts geometry input in the Extended Well-Known Binary (EWKB) representation to a geometry object in JSON format
|
SELECT as_geo_json( some_geo_field )
FROM ...
WHERE ...
INTO ...
|
⬆️ back to top
Date and Time Functions
Find more information in the ABAP Keyword Documentation. The Built-In Functions cheat sheet covers code examples.
SELECT SINGLE
carrid,
"Selection of time and date-related functions
add_days( @( cl_abap_context_info=>get_system_date( ) ), 4 ) AS add_days,
add_months( @( cl_abap_context_info=>get_system_date( ) ), 2 ) AS add_months,
is_valid( @( cl_abap_context_info=>get_system_date( ) ) ) AS date_is_valid,
is_valid( @( cl_abap_context_info=>get_system_time( ) ) ) AS time_is_valid
"...
FROM zdemo_abap_carr
INTO @DATA(tab_w_date_time_func).
⬆️ back to top
UUID Function
UUID function
SELECT SINGLE
carrid,
"UUID
uuid( ) AS uuid
FROM zdemo_abap_carr
INTO @DATA(tab_w_uuid).
⬆️ back to top
Create, Update, and Delete Operations
[!NOTE] - The following sections include code patterns. To explore various syntax options with an executable example, see section Example: Exploring ABAP SQL Statements Changing Data in Database Tables below. - There are also CDS artifacts that allow not only reading but also creating, updating, and deleting. See this section.
INSERT
- Inserts one or more rows into a database table specified.
- The rows to be inserted are taken from a structure, an internal table, or the result set of an embedded subquery.
- As mentioned above, structures and internal tables from which to insert content should be specified as host variables (with
@) or host
expressions (with @( ... )).
- The system fields
sy-subrc (0 = single row or all rows inserted successfully, 4 = row not or not all rows inserted) and sy-dbcnt (number of rows that are inserted) are set. - More information:
INSERT
"Inserting a single row into a database table
INSERT dbtab FROM @row.
"Alternative syntax, same effect
INSERT INTO dbtab VALUES @row.
"Line is created inline using the VALUE operator as part of a host expression
INSERT dbtab FROM @( VALUE #( comp1 = ... comp2 = ... ) ).
"Inserting multiple lines from an internal table into a database table.
"Make sure that the internal table does not contain a line having the same key
"as an existing row in the database table. Otherwise, a runtime error occurs.
INSERT dbtab FROM TABLE @itab.
"Inserting lines from a table declared inline using the VALUE operator
"as part of a host expression
INSERT dbtab FROM TABLE @( VALUE #( ( comp1 = ... comp2 = ... )
( comp1 = ... comp2 = ... ) ) ).
"ACCEPTING DUPLICATE KEYS addition: To avoid the runtime error mentioned above,
"all lines that would produce duplicate entries in the database table
"regarding the keys are discarded and sy-subrc is set to 4.
INSERT dbtab FROM TABLE @itab ACCEPTING DUPLICATE KEYS.
"Inserting the result set of an embedded subquery
"Here, multiple result sets can be joined, e. g. using UNION.
INSERT dbtab FROM ( SELECT ... ).
⬆️ back to top
UPDATE
- Changes the content of one or more rows of a database table specified.
- Similar to
INSERT, sy-subrc and sy-dbcnt are set. - More information:
UPDATE
"Changing content by overwriting entire rows based on a structure
UPDATE dbtab FROM @row.
UPDATE dbtab FROM @( VALUE #( comp1 = ... comp2 = ... ) ). "Using a host expression
"Changing content by overwriting entire rows based on rows in an internal table
UPDATE dbtab FROM TABLE @itab.
"Using a host expression
UPDATE dbtab FROM TABLE @( VALUE #( ( comp1 = ... comp2 = ... )
( comp1 = ... comp2 = ... ) ) ).
*&---------------------------------------------------------------------*
*& SET addition
*&---------------------------------------------------------------------*
"Changing values of specific fields without overwriting other, non-specified
"fields
"Changing values of specific fields in all table rows
"There are mutliple options for the value assignment. E.g. you can use
"a literal, host variable/expression, SQL function, and so on.
"The following statement does not use a WHERE clause. Therefore,
"the comp2 values of all database table entries are changed.
UPDATE dbtab SET comp2 = 'X'.
"Changing values of specific fields in all found entries by restricting
"the data sets to be changed using a WHERE clause
"Use a comma-separated list for the components after SET
UPDATE dbtab SET comp2 = 'X', comp3 = 'Y' WHERE comp4 > 100.
"Changing values of specific fields in a single database table entry
"Assume the entry can be uniquely identified by specifying key values
"in the WHERE clause
UPDATE dbtab SET comp2 = 'X' WHERE key_field = 'Y'.
*&---------------------------------------------------------------------*
*& INDICATORS ... SET STRUCTURE addition
*&---------------------------------------------------------------------*
"Similar to SET, using the INDICATORS ... addition, you can change content
"of specific fields without overwriting existing values of other fields by
"specifying set indicators.
"Example:
"- Structured type is created with WITH INDICATORS addition
"- Internal table from which to update dbtab is created;
" it includes the indicator structure comp_ind
"- Internal table is filled; only one component is flagged as to be updated
"- Other fields remain unchanged; note that key fields must be included
" in ind_tab (indicator setting for key fields has no effect)
TYPES ind_wa TYPE dbtab WITH INDICATORS comp_ind TYPE abap_bool.
DATA ind_tab TYPE TABLE OF ind_wa.
ind_tab = VALUE #(
( comp1 = ... comp2 = ... comp_ind-comp2 = abap_true )
( comp1 = ... comp2 = ... comp_ind-comp2 = abap_true ) ).
UPDATE dbtab FROM TABLE @ind_tab INDICATORS SET STRUCTURE comp_ind.
"In the following example, the logic is reversed using NOT.
UPDATE dbtab FROM TABLE @ind_tab INDICATORS NOT SET STRUCTURE comp_ind.
⬆️ back to top
MODIFY
- Inserts one or more rows into a database table specified or overwrites existing ones.
- As above,
sy-subrc and sy-dbcnt are set. - More information:
MODIFY
"Inserting a single row into a database table or changing an existing row
MODIFY dbtab FROM @row.
"Using a host expression
MODIFY dbtab FROM @( VALUE #( comp1 = ... comp2 = ... ) ).
"Inserting/Changing multiple rows
MODIFY dbtab FROM TABLE @itab.
"Using a host expression
MODIFY dbtab FROM TABLE @( VALUE #( ( comp1 = ... comp2 = ... )
( comp1 = ... comp2 = ... ) ) ).
"Inserting/Changing multiple rows based on a result set of an embedded subquery
MODIFY dbtab FROM ( SELECT ... ).
⬆️ back to top
DELETE
- Deletes one or more rows from a database table specified.
- As above,
sy-subrc and sy-dbcnt are set. - More information:
DELETE
"Variant DELETE FROM ...: Either all rows are deleted or restricted
"All rows are deleted
DELETE FROM dbtab.
"Rows are deleted based on a condition
DELETE FROM dbtab WHERE ....
"Note that there are further options available, e. g. ORDER BY, UP TO
"Variant DELETE ... FROM ...: Deleting a single row or multiple row
DELETE dbtab FROM @row.
"Using a host expression
DELETE dbtab FROM @( VALUE #( comp1 = ... ) ).
"Rows are deleted based on data in an internal table
DELETE dbtab FROM TABLE @itab.
"Using a host expression
DELETE dbtab FROM TABLE @( VALUE #( ( comp1 = ... )
( comp1 = ... ) ) ).
⬆️ back to top
Using Constructor Expressions in ABAP SQL Statements
Constructor expressions can be very handy in ABAP SQL statements. For more information about constructor expressions, see the ABAP Keyword Documentation and the Constructor Expressions cheat sheet. Many additions are available. The following examples show a selection. The previous code snippets already include the use of the VALUE operator with which structures and internal tables can be created in place.
*&---------------------------------------------------------------------*
*& VALUE
*&---------------------------------------------------------------------*
"VALUE operator as shown above, creating an internal table in place
INSERT dbtab FROM TABLE @( VALUE #( ( key_field = 1 comp1 = ... )
( key_field = 2 comp1 = ... )
( key_field = 3 comp1 = ... ) ) ).
"Inserting a table row from a row created in place
INSERT dbtab FROM @( VALUE #( key_field = 4 comp1 = ... ) ).
"FOR LOOP with VALUE
DATA(it) = VALUE some_it_type( ( key_field = 5 comp1 = ... )
( key_field = 6 comp1 = ... )
( key_field = 7 comp1 = ... ) ).
"In the following example, the internal table from above is looped across. You
"can imagine modifying the components (or not) when mapping the fields (as indicated
"by the concatentation in the example). In doing so, the internal table values may or
"may be not modified and inserted into the database table.
INSERT dbtab FROM TABLE @( VALUE #( FOR wa IN it ( key_field = wa-key_field
comp1 = wa-comp1 && 'XYZ'
... ) ) ).
"Using a constructor expression with VALUE and BASE in an UPDATE statement
"The example assumes selecting an entry from a database, modifying it, and updating it again,
"but the non-modified entries shall remain unchanged.
SELECT SINGLE * FROM dbtab WHERE key_field = ... INTO @DATA(read_line).
"Assumed comp1 or comp3 components are not specified, but they retain their
"original content and are not initialized when writing to the database table.
UPDATE dbtab FROM @( VALUE #( BASE read_line comp2 = ... comp4 = ... ) ).
*&---------------------------------------------------------------------*
*& CORRESPONDING
*&---------------------------------------------------------------------*
"The following example assumes that some_itab has a different line type than dbtab.
"I.e. some_itab may have more components that are not available in dbtab. The
"corresponding fields with identical names are used. It is assumed that the components'
"types are compatible or convertible.
INSERT dbtab FROM TABLE @( CORRESPONDING #( some_itab ) ).
"This example assumes that field names are not identical. Using the CORRESPONDING operator
"and its additions, you can carry out a mapping and, for example, exclude components. It is
"assumed that the components' types are compatible or convertible.
INSERT dbtab FROM TABLE @( CORRESPONDING #( another_itab MAPPING key_field = key comp1 = compZ EXCEPT comp2 ) ).
⬆️ back to top
Example: Exploring Create, Update, and Delete Operations with ABAP SQL Statements
To try the example out, create a demo class named zcl_demo_abap. If it already exists, reuse it. Otherwise, create a new class with a different name. Paste the code into it. If you choose a different class name, update the class name in the code snippet accordingly. After activation, choose F9 in ADT to execute the class. The example uses a database table of the ABAP cheat sheets repository and is set up to display output in the console.
CLASS zcl_demo_abap DEFINITION
PUBLIC
FINAL
CREATE PUBLIC .
PUBLIC SECTION.
INTERFACES if_oo_adt_classrun.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_demo_abap IMPLEMENTATION.
METHOD if_oo_adt_classrun~main.
*&---------------------------------------------------------------------*
*& INSERT
*&---------------------------------------------------------------------*
"Deleting the contents of a demo database table to start with an empty database table
DELETE FROM zdemo_abap_tab1.
"Inserting a single row into a database table
DATA(row_a) = VALUE zdemo_abap_tab1( key_field = 1 char1 = 'aaa' char2 = 'bbb' num1 = 10 num2 = 100 ).
INSERT zdemo_abap_tab1 FROM @row_a.
"Alternative syntax, same effect
DATA(row_b) = VALUE zdemo_abap_tab1( key_field = 2 char1 = 'ccc' char2 = 'ddd' num1 = 20 num2 = 200 ).
INSERT INTO zdemo_abap_tab1 VALUES @row_b.
"Line is created inline using the VALUE operator as part of a host expression
INSERT zdemo_abap_tab1 FROM @( VALUE #( key_field = 3 char1 = 'eee' char2 = 'fff' num1 = 30 num2 = 300 ) ).
"Inserting multiple lines from an internal table into a database table.
"Make sure that the internal table does not contain a line having the same key
"as an existing row in the database table. Otherwise, a runtime error occurs.
TYPES it_type TYPE TABLE OF zdemo_abap_tab1 WITH EMPTY KEY.
DATA(it_a) = VALUE it_type( ( key_field = 4 char1 = 'ggg' char2 = 'hhh' num1 = 40 num2 = 400 )
( key_field = 5 char1 = 'iii' char2 = 'jjj' num1 = 50 num2 = 500 ) ).
INSERT zdemo_abap_tab1 FROM TABLE @it_a.
"Inserting lines from a table declared inline using the VALUE operator
"as part of a host expression
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 6 char1 = 'kkk' char2 = 'lll' num1 = 60 num2 = 600 )
( key_field = 7 char1 = 'mmm' char2 = 'nnn' num1 = 70 num2 = 700 ) ) ).
"ACCEPTING DUPLICATE KEYS addition: To avoid the runtime error mentioned above,
"all lines that would produce duplicate entries in the database table
"regarding the keys are discarded and sy-subrc is set to 4.
DATA(it_b) = VALUE it_type( ( key_field = 1 char1 = '###' char2 = '###' num1 = 0 num2 = 0 )
( key_field = 8 char1 = 'ooo' char2 = 'ppp' num1 = 80 num2 = 800 ) ).
INSERT zdemo_abap_tab1 FROM TABLE @it_b ACCEPTING DUPLICATE KEYS.
ASSERT sy-subrc = 4.
"Inserting the result set of an embedded subquery
"Various options are available. The examples show a selection.
"The subqueries use an internal table.
"No restriction specified, all entries are inserted
DATA(it_c) = VALUE it_type( ( key_field = 9 char1 = 'qqq' char2 = 'rrr' num1 = 90 num2 = 900 )
( key_field = 10 char1 = 'sss' char2 = 'ttt' num1 = 100 num2 = 1000 )
( key_field = 11 char1 = 'uuu' char2 = 'vvv' num1 = 110 num2 = 1100 ) ).
INSERT zdemo_abap_tab1 FROM ( SELECT key_field, char1, char2, num1, num2 FROM @it_c AS itc ).
"WHERE condition specified
DATA(it_d) = VALUE it_type( ( key_field = 12 char1 = 'www' char2 = 'xxx' num1 = 120 num2 = 1200 )
( key_field = 13 char1 = 'yyy' char2 = 'zzz' num1 = 130 num2 = 1300 )
( key_field = 14 char1 = 'AAA' char2 = 'BBB' num1 = 140 num2 = 1400 ) ).
INSERT zdemo_abap_tab1 FROM ( SELECT key_field, char1, char2, num1, num2 FROM @it_d AS itd WHERE key_field <= 13 ).
"Using a subquery and replacing existing values in a CASE expression
DATA(it_e) = VALUE it_type( ( key_field = 15 char1 = 'X' char2 = 'DDD' num1 = 150 num2 = 1500 )
( key_field = 16 char1 = 'Y' char2 = 'FFF' num1 = 160 num2 = 1600 )
( key_field = 17 char1 = 'Z' char2 = 'HHH' num1 = 170 num2 = 1700 ) ).
INSERT zdemo_abap_tab1 FROM (
SELECT key_field,
CASE WHEN char1 = 'X' THEN 'CCC'
WHEN char1 = 'Y' THEN 'EEE'
ELSE 'GGG'
END AS char1,
char2, num1, num2
FROM @it_e AS ite ).
"Retrieving all database entries for display purposes
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_insert).
out->write( data = itab_insert name = `itab_insert` ).
*&---------------------------------------------------------------------*
*& UPDATE
*&---------------------------------------------------------------------*
"Preparing a demo database table
DELETE FROM zdemo_abap_tab1.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'aaa' char2 = 'bbb' num1 = 10 num2 = 100 )
( key_field = 2 char1 = 'ccc' char2 = 'ddd' num1 = 20 num2 = 200 )
( key_field = 3 char1 = 'eee' char2 = 'fff' num1 = 30 num2 = 300 ) ) ).
"Changing content by overwriting entire rows based on a structure
DATA(row_c) = VALUE zdemo_abap_tab1( key_field = 1 char1 = 'ggg' char2 = 'hhh' num1 = 12 num2 = 123 ).
UPDATE zdemo_abap_tab1 FROM @row_c.
"The following example specifies a value for the key field that does not
"exist in the database table. Consequently, no update takes place, the sy-subrc
"value is set to 4.
UPDATE zdemo_abap_tab1 FROM @( VALUE #( key_field = 4 char1 = 'iii' char2 = 'jjj' num1 = 44 num2 = 456 ) ).
ASSERT sy-subrc = 4.
"Changing content by overwriting entire rows based on rows in an internal table
DATA(it_j) = VALUE it_type( ( key_field = 2 char1 = 'kkk' char2 = 'lll' num1 = 23 num2 = 234 )
( key_field = 3 char1 = 'mmm' char2 = 'nnn' num1 = 34 num2 = 345 ) ).
UPDATE zdemo_abap_tab1 FROM TABLE @it_j.
"Using a host expression, internal table created in place
INSERT zdemo_abap_tab1 FROM @( VALUE #( key_field = 4 char1 = 'ooo' char2 = 'ppp' num1 = 40 num2 = 400 ) ).
"The following example does not specify two components. Initial values are used.
UPDATE zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 4 char2 = 'qqq' num1 = 44 ) ) ).
"INDICATORS addition: Changing content of specific fields without overwriting
"existing values of other fields
TYPES ind_wa TYPE zdemo_abap_tab1 WITH INDICATORS comp_ind TYPE abap_boolean.
TYPES ind_tab TYPE TABLE OF ind_wa WITH EMPTY KEY.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 5 char1 = 'rrr' char2 = 'sss' num1 = 50 num2 = 500 )
( key_field = 6 char1 = 'ttt' char2 = 'uuu' num1 = 60 num2 = 600 ) ) ).
UPDATE zdemo_abap_tab1 FROM TABLE @( VALUE ind_tab( ( key_field = 5 char1 = 'vvv' char2 = 'www' num1 = 56 num2 = 567
comp_ind-char1 = abap_true comp_ind-char2 = abap_false
comp_ind-num1 = abap_true comp_ind-num2 = abap_false )
( key_field = 6 char1 = 'xxx' char2 = 'yyy' num1 = 67 num2 = 678
comp_ind-char1 = abap_false comp_ind-char2 = abap_true
comp_ind-num1 = abap_false comp_ind-num2 = abap_true ) ) )
INDICATORS SET STRUCTURE comp_ind.
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_update).
out->write( data = itab_update name = `itab_update` ).
"SET addition: Changing values of specific fields in all table rows
"Preparing a demo database table
DELETE FROM zdemo_abap_tab1.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'aaa' char2 = 'bbb' num1 = 10 num2 = 100 )
( key_field = 2 char1 = 'ccc' char2 = 'ddd' num1 = 20 num2 = 200 )
( key_field = 3 char1 = 'eee' char2 = 'fff' num1 = 30 num2 = 300 ) ) ).
"The following example transforms the character string of a
"component to upper case. Since no WHERE clause is specified,
"the char1 components of all database table entries are affected
UPDATE zdemo_abap_tab1 SET char1 = upper( char1 ).
"Changing values of specific fields in all found entries by restricting
"the data sets to be changed using a WHERE clause
UPDATE zdemo_abap_tab1 SET char2 = concat( char2, '#' ), num1 = num1 + 1, num2 = num2 + 2 WHERE num1 > 15.
"Changing values of specific fields in a single database table entry
"assuming the entry can be uniquely identified by specifying key values
"in the WHERE clause
"Use a comma-separated list after SET to specify multiple components
INSERT zdemo_abap_tab1 FROM @( VALUE #( key_field = 99 char1 = 'A' char2 = 'B' num1 = 99 num2 = 100 ) ).
UPDATE zdemo_abap_tab1 SET char2 = 'X', num1 = 1, num2 = 2 WHERE key_field = 99.
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_update_set).
out->write( data = itab_update_set name = `itab_update_set` ).
*&---------------------------------------------------------------------*
*& MODIFY
*&---------------------------------------------------------------------*
"The examples include INSERT statements to prepare the database table.
"Deleting the contents of a demo database table to start with an empty database table
DELETE FROM zdemo_abap_tab1.
"Inserting a single row into a database table
DATA(row_d) = VALUE zdemo_abap_tab1( key_field = 1 char1 = 'aaa' char2 = 'bbb' num1 = 10 num2 = 100 ).
MODIFY zdemo_abap_tab1 FROM @row_d.
"Inserting a table row using a host expression and a row created in place
MODIFY zdemo_abap_tab1 FROM @( VALUE #( key_field = 2 char1 = 'ccc' char2 = 'ddd' num1 = 20 num2 = 200 ) ).
"Inserting a table row ...
MODIFY zdemo_abap_tab1 FROM @( VALUE #( key_field = 3 char1 = 'eee' char2 = 'fff' num1 = 30 num2 = 300 ) ).
"... and modifying it. No new row is inserted, the existing one is modified as the key already exists.
MODIFY zdemo_abap_tab1 FROM @( VALUE #( key_field = 3 char1 = 'ggg' char2 = 'hhh' num1 = 34 num2 = 345 ) ).
"Inserting table rows from an internal table
MODIFY zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 4 char1 = 'iii' char2 = 'jjj' num1 = 40 num2 = 400 )
( key_field = 5 char1 = 'kkk' char2 = 'lll' num1 = 50 num2 = 500 ) ) ).
"Modifying/inserting from an internal table
MODIFY zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 4 char1 = 'mmm' char2 = 'nnn' num1 = 45 num2 = 456 )
( key_field = 5 char1 = 'ooo' char2 = 'ppp' num1 = 56 num2 = 567 )
( key_field = 6 char1 = 'qqq' char2 = 'rrr' num1 = 60 num2 = 600 )
( key_field = 7 char1 = 'sss' char2 = 'ttt' num1 = 70 num2 = 700 ) ) ).
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_modify).
out->write( data = itab_modify name = `itab_modify` ).
*&---------------------------------------------------------------------*
*& DELETE
*&---------------------------------------------------------------------*
"Deleting the contents of a demo database table to start with an empty database table
DELETE FROM zdemo_abap_tab1.
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_delete).
ASSERT itab_delete IS INITIAL.
"Inserting demo data into the database table
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 num1 = 10 )
( key_field = 2 num1 = 20 )
( key_field = 3 num1 = 30 )
( key_field = 4 num1 = 40 )
( key_field = 5 num1 = 50 )
( key_field = 6 num1 = 60 )
( key_field = 7 num1 = 70 )
( key_field = 8 num1 = 80 ) ) ).
"Rows are deleted based on a condition
DELETE FROM zdemo_abap_tab1 WHERE key_field >= 7.
"Deleting a single row based on entries in a structure
"Keys are specified
DELETE zdemo_abap_tab1 FROM @( VALUE #( key_field = 1 ) ).
"There is no entry with key_field = 0.
DELETE zdemo_abap_tab1 FROM @( VALUE zdemo_abap_tab1( num1 = 20 ) ).
ASSERT sy-subrc = 4.
"Deleting multiple rows based on entries in an internal table
DELETE zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 2 )
( key_field = 3 ) ) ).
SELECT * FROM zdemo_abap_tab1 INTO TABLE @itab_delete.
out->write( data = itab_delete name = `itab_delete` ).
*&-----------------------------------------------------------------------*
*& Exploring constructor expressions for internal tables created in place
*&-----------------------------------------------------------------------*
"For more information about constructor expressions, see the ABAP Keyword Documentation and the
"Constructor Expressions cheat sheet. Many additions are available. The examples show a
"selection.
DELETE FROM zdemo_abap_tab1.
"--- VALUE ---
"VALUE operator as shown above, creating an internal table in place
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 char1 = 'aaa' char2 = 'bbb' num1 = 10 num2 = 100 )
( key_field = 2 char1 = 'ccc' char2 = 'ddd' num1 = 20 num2 = 200 ) ) ).
"FOR LOOP with VALUE
DATA(it_f) = VALUE it_type( ( key_field = 3 char1 = 'ee' char2 = 'ff' num1 = 30 num2 = 300 )
( key_field = 4 char1 = 'gg' char2 = 'hh' num1 = 40 num2 = 400 )
( key_field = 5 char1 = 'ii' char2 = 'jj' num1 = 50 num2 = 500 ) ).
"In the example, the internal table from above is looped across. The index value is
"stored and used to modify field values of the internal table. In doing so, the modified
"internal table values are inserted into the database table.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( FOR wa IN it_f INDEX INTO idx ( key_field = wa-key_field
char1 = wa-char1 && idx
char2 = wa-char2 && idx
num1 = wa-num1 + idx
num2 = wa-num2 + idx ) ) ).
"Using a constructor expression with VALUE and BASE in an UPDATE statement
"The example assumes selecting an entry from a database, modifying it, and updating it again,
"but the non-modified entries shall remain unchanged.
INSERT zdemo_abap_tab1 FROM @( VALUE #( key_field = 100 char1 = 'xxx' char2 = 'yyy' num1 = 100 num2 = 101 ) ).
SELECT SINGLE * FROM zdemo_abap_tab1 WHERE key_field = 100 INTO @DATA(read_line).
UPDATE zdemo_abap_tab1 FROM @( VALUE #( BASE read_line char2 = '#' num1 = 1 ) ).
"--- CORRESPONDING ---
TYPES: BEGIN OF s1,
key_field TYPE i,
char1 TYPE c LENGTH 5,
num1 TYPE i,
END OF s1,
it_type_s1 TYPE TABLE OF s1 WITH EMPTY KEY,
BEGIN OF s2,
key TYPE i,
char TYPE c LENGTH 5,
number1 TYPE i,
num2 TYPE p LENGTH 8 DECIMALS 2,
END OF s2,
it_type_s2 TYPE TABLE OF s2 WITH EMPTY KEY.
"Identical component names in the internal table
"The example includes compatible and convertible types.
DATA(it_g) = VALUE it_type_s1( ( key_field = 6 char1 = 'kkk' num1 = 60 )
( key_field = 7 char1 = 'lll' num1 = 70 ) ).
INSERT zdemo_abap_tab1 FROM TABLE @( CORRESPONDING #( it_g ) ).
"Non-identical component names in the internal table; using the MAPPING/EXCEPT additions
"The example includes compatible and convertible types.
DATA(it_h) = VALUE it_type_s2( ( key = 8 char = 'mmm' number1 = 80 num2 = '1.23' )
( key = 9 char = 'nnn' number1 = 90 num2 = '4.56' ) ).
INSERT zdemo_abap_tab1 FROM TABLE @( CORRESPONDING #( it_h MAPPING key_field = key char2 = char num1 = number1 EXCEPT num2 ) ).
SELECT * FROM zdemo_abap_tab1 INTO TABLE @DATA(itab_constr).
out->write( data = itab_constr name = `itab_constr` ).
ENDMETHOD.
ENDCLASS.
⬆️ back to top
MERGE: Modification Operations on a Data Source by Evaluating Another Data Source
The following code snippet shows a selection of syntax options for ABAP SQL MERGE statements:
MERGE INTO target [AS target_alias]
USING { source [AS source_alias] | @itab AS itab_alias [DECLARE CLIENT clnt] } ON join_condition
WHEN MATCHED [AND match_condition1 [AND match_condition2 ... ] ] THEN { UPDATE { ALL | SET set_condition } | DELETE }
WHEN NOT MATCHED [AND match_condition [AND match_condition2 ... ]] THEN INSERT { ALL | ( columns_list ) VALUES ( values_expressions ) } ... .
MERGE allows modification operations on a data source by evaluating another data source.- It combines the logic of insert, update, and delete operations into a single statement based on matching datasets using join conditions. Note that
MERGE statements perform a right outer join. - Modifications can be made by specifying whether the datasets in the source and target match or do not match, or both of them.
- Notes on the syntax:
USING clause:- You can specify writable database objects for the target, such as database tables or CDS table entities.
- The source table is in a read position, allowing you to specify both writable database objects and read-only data sources, as well as internal tables.
- Optionally, you can provide alias names for the target and source tables. For internal tables, use
@ to escape the table, and an alias is mandatory. If available, you can specify the client field for an internal table using DECLARE CLIENT. - The join conditions following
ON are those of SELECT statements. - The syntax allows for a
WHEN MATCHED clause, a WHEN NOT MATCHED clause, or both. If both are used, the WHEN MATCHED clause must come before the WHEN NOT MATCHED clause. WHEN MATCHED clause:- You can optionally enhance it with additional match conditions using
AND. - Conditions can involve both source and target components.
- It allows an update or delete operation when the datasets match.
UPDATE: Updates the target with source content based on match conditions. Using ALL means all source fields are considered for the update. SET allows specifying conditions for conditional updates. Conditions can be represented by expressions, such as ABAP SQL functions.DELETE: Deletes datasets from the target when matching datasets are found in the source.WHEN NOT MATCHED clause:- It allows an insert operation when the datasets do not match.
- You can optionally enhance it with additional match conditions using
AND and involving both source and target components. - Using
ALL means all unmatched datasets in the source are inserted into the target table. The number of columns must be the same for both the target and source. - The
VALUES addition allows you to specify concrete columns and values to insert. VALUES is preceded by a parenthesized, comma-separated list of column names, which can be a single column name and can only be specified once. VALUES is followed by a parenthesized, comma-separated list of values that correspond to the specified columns. The number of values must match the number of specified column names.
Expand the following collapsible section for example code. To try the example out, create a demo class named zcl_demo_abap. If it already exists, reuse it. Otherwise, create a new class with a different name. Paste the code into it. If you choose a different class name, update the class name in the code snippet accordingly. After activation, choose F9 in ADT to execute the class. The example is set up to display output in the console.
🟢 Click to expand for example code
CLASS zcl_demo_abap DEFINITION
PUBLIC
FINAL
CREATE PUBLIC .
PUBLIC SECTION.
INTERFACES if_oo_adt_classrun.
METHODS del.
METHODS prep_db.
METHODS prep_it.
METHODS display_dbtab_content IMPORTING out TYPE REF TO if_oo_adt_classrun_out.
METHODS set_example_divider IMPORTING out TYPE REF TO if_oo_adt_classrun_out
text TYPE string.
DATA itabdb TYPE TABLE OF zdemo_abap_tab1 WITH EMPTY KEY.
TYPES: BEGIN OF s1,
comp_a TYPE i,
comp_b TYPE c LENGTH 10,
comp_c TYPE c LENGTH 10,
comp_d TYPE i,
comp_e TYPE i,
END OF s1.
DATA it TYPE TABLE OF s1 WITH EMPTY KEY.
METHODS:
m01_alias_names IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m02_join_conditions IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m03_wm_extra_condition IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m04_using_itab IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m05_wm_then_update_all IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m06_wm_then_delete IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m07_wnm_then_insert_all IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m08_wm_and_wnm_then_insert_all IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m09_wnm_then_insert_col_list IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m10_coalesce IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m11_dynamic_merge IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string,
m12_system_fields IMPORTING out TYPE REF TO if_oo_adt_classrun_out text TYPE string.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_demo_abap IMPLEMENTATION.
METHOD if_oo_adt_classrun~main.
"Dynamically calling methods of the class
"The method names are retrieved using RTTI. For more information, refer to the
"Dynamic Programming ABAP cheat sheet.
"Only those methods should be called that follow the naming convention M + digit.
DATA(methods) = CAST cl_abap_classdescr( cl_abap_typedescr=>describe_by_object_ref( me ) )->methods.
SORT methods BY name ASCENDING.
"To call a particular method only, you can comment in the WHERE clause and
"adapt the literal appropriately.
LOOP AT methods INTO DATA(meth_wa)
"WHERE name CS 'M01'
.
TRY.
"The find function result indicates that the method name begins (offset = 0) with M and a digit.
IF find( val = meth_wa-name pcre = `^M\d` case = abap_false ) = 0.
CALL METHOD (meth_wa-name) EXPORTING out = out text = CONV string( meth_wa-name ).
ENDIF.
CATCH cx_root INTO DATA(error).
out->write( error->get_text( ) ).
ENDTRY.
ENDLOOP.
ENDMETHOD.
METHOD prep_db.
del( ).
INSERT zdemo_abap_tab1 FROM TABLE @(
VALUE #(
( key_field = 1
char1 = 'A1'
char2 = 'A2'
num1 = 1
num2 = 2 )
( key_field = 2
char1 = 'B1'
char2 = 'B2'
num1 = 3
num2 = 4 )
( key_field = 3
char1 = 'C1'
char2 = 'C2'
num1 = 5
num2 = 6 )
( key_field = 4
char1 = 'D1'
char2 = 'D2'
num1 = 7
num2 = 8 )
( key_field = 9
char1 = 'E1'
char2 = 'E2'
num1 = 9
num2 = 10 )
( key_field = 10
char1 = 'F1'
char2 = 'F2'
num1 = 11
num2 = 12 ) ) ).
INSERT zdemo_abap_tab2 FROM TABLE @(
VALUE #(
( key_field = 1
char1 = 'Z'
num1 = 100
numlong = 200 )
( key_field = 2
char1 = 'Y'
num1 = 300
numlong = 400 )
( key_field = 3
char1 = 'X'
num1 = 500
numlong = 600 )
( key_field = 4
char1 = 'W'
num1 = 700
numlong = 800 )
( key_field = 6
char1 = 'V'
num1 = 900
numlong = 1000 )
( key_field = 7
char1 = 'W'
num1 = 1100
numlong = 1200 ) ) ).
ENDMETHOD.
METHOD del.
DELETE FROM zdemo_abap_tab1.
DELETE FROM zdemo_abap_tab2.
ENDMETHOD.
METHOD display_dbtab_content.
SELECT * FROM zdemo_abap_tab1 ORDER BY key_field INTO TABLE @itabdb.
out->write( itabdb ).
ENDMETHOD.
METHOD prep_it.
CLEAR it.
it = VALUE #(
( comp_a = 1
comp_b = 'IT_1'
comp_c = 'IT_2'
comp_d = 100
comp_e = 99 )
( comp_a = 2
comp_b = 'IT_3'
comp_c = 'IT_4'
comp_d = 98
comp_e = 97 )
( comp_a = 3
comp_b = 'IT_5'
comp_c = 'IT_6'
comp_d = 96
comp_e = 95 )
( comp_a = 4
comp_b = 'IT_7'
comp_c = 'IT_8'
comp_d = 94
comp_e = 93 )
( comp_a = 5
comp_b = 'IT_9'
comp_c = 'IT_10'
comp_d = 92
comp_e = 91 )
( comp_a = 6
comp_b = 'IT_11'
comp_c = 'IT_12'
comp_d = 90
comp_e = 89 ) ).
ENDMETHOD.
METHOD m01_alias_names.
set_example_divider( out = out text = |{ text }: (Not) Using alias names| ).
"The following example statements use and do not use alias names for the source
"and target.
"The statements use the WHEN MATCHED clause and THEN UPDATE SET.
"WHEN MATCHED THEN UPDATE SET allows specifying set conditions to perform
"conditional update operations. The follwing examples illustrate that the
"values specified for the conditions can be represented by expressions, for
"example, using ABAP SQL functions.
prep_db( ).
"Without alias names
MERGE INTO zdemo_abap_tab1
USING zdemo_abap_tab2
ON zdemo_abap_tab1~key_field = zdemo_abap_tab2~key_field
WHEN MATCHED THEN UPDATE SET char1 = '#'.
display_dbtab_content( out ).
out->write( |\n| ).
prep_db( ).
"With alias names
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON a~key_field = b~key_field
WHEN MATCHED THEN UPDATE SET char1 = '#'.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m02_join_conditions.
set_example_divider( out = out text = |{ text }: Join condition options| ).
"Most of the statements in this example use fairly simple join conditions using
"comparisons per field values. This is to emphasize that more complex conditions
"such as using AND, OR, and parenthesized expressions are possible.
prep_db( ).
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON ( a~key_field = b~key_field AND b~numlong = 400 )
OR ( a~key_field = b~key_field AND b~num1 > 600 )
WHEN MATCHED THEN UPDATE SET char1 = '#'.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m03_wm_extra_condition.
set_example_divider( out = out text = |{ text }: WHEN MATCHED with extra condition| ).
"After WHEN MATCHED, AND can optionally be used to specify extra conditions.
"Multiple AND additions followed by condition specifications can be used.
"The WHEN NOT MATCHED clause can also be specified with extra conditions.
prep_db( ).
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON a~key_field = b~key_field
WHEN MATCHED AND b~num1 <> 100
THEN UPDATE SET char1 = '#'.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m04_using_itab.
set_example_divider( out = out text = |{ text }: USING with internal table| ).
"In the example MERGE statements here, the INTO clause uses a database table as
"target. You can also use other data sources such as CDS table entities.
"In the USING clause, internal tables can be specified.
prep_db( ).
prep_it( ).
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN UPDATE SET char1 = '#'.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m05_wm_then_update_all.
set_example_divider( out = out text = |{ text }: WHEN MATCHED THEN UPDATE ALL| ).
prep_db( ).
prep_it( ).
"Note:
"- The number of columns of the target table and values must be equal.
" Therefore, the first statement does not work. The database tables
" have a different number of columns.
"- The column names in the target and source table do not have to match,
" but the columns' types must be compatible.
* MERGE INTO zdemo_abap_tab1 AS a
* USING zdemo_abap_tab2 AS b
* ON a~key_field = b~key_field
* WHEN MATCHED THEN UPDATE ALL.
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN UPDATE ALL.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m06_wm_then_delete.
set_example_divider( out = out text = |{ text }: WHEN MATCHED THEN DELETE| ).
prep_db( ).
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON a~key_field = b~key_field
WHEN MATCHED THEN DELETE.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m07_wnm_then_insert_all.
set_example_divider( out = out text = |{ text }: WHEN NOT MATCHED THEN INSERT ALL| ).
prep_db( ).
prep_it( ).
"Note:
"- The number of columns of the target table and values must be equal.
"- The example statement uses the WHEN NOT MATCHED clause only.
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN NOT MATCHED THEN INSERT ALL.
display_dbtab_content( out ).
out->write( |\n| ).
prep_db( ).
"The following example emphasizes that joins, depending on the join
"conditions, can result in duplicate entries.
it = VALUE #( ( comp_a = 1
comp_b = 'X'
comp_c = 'Y'
comp_d = 100
comp_e = 99 ) ).
TRY.
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~char1 = b~comp_b
WHEN NOT MATCHED THEN INSERT ALL.
display_dbtab_content( out ).
CATCH cx_sy_open_sql_db INTO DATA(e).
out->write( e->get_text( ) ).
ENDTRY.
ENDMETHOD.
METHOD m08_wm_and_wnm_then_insert_all.
set_example_divider( out = out text = |{ text }: WHEN NOT MATCHED THEN INSERT ALL, with WHEN MATCHED clause| ).
"Note:
"- The WHEN MATCHED clause always precedes the WHEN NOT MATCHED clause.
"- The example reflects an upsert, i.e. when matched, entries are updated,
" otherwise, an insertion occurs.
"- Specifying both clauses is optional.
prep_db( ).
prep_it( ).
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN UPDATE SET char1 = '#'
WHEN NOT MATCHED THEN INSERT ALL.
display_dbtab_content( out ).
ENDMETHOD.
METHOD m09_wnm_then_insert_col_list.
set_example_divider( out = out text = |{ text }: WHEN NOT MATCHED THEN INSERT columns_list| ).
prep_db( ).
prep_it( ).
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON a~key_field = b~key_field
WHEN NOT MATCHED
THEN INSERT ( key_field, char1, char2 ) VALUES ( b~key_field, 'AB', 'AP' ).
display_dbtab_content( out ).
ENDMETHOD.
METHOD m10_coalesce.
set_example_divider( out = out text = |{ text }: coalesce| ).
"The following example illustrates that for certain column specifications
"and join conditions, null values can be produced. If detected by the
"compiler, a syntax warning occurs. In such cases, the coalesce function
"can be specified.
prep_db( ).
MERGE INTO zdemo_abap_tab1 AS a
USING zdemo_abap_tab2 AS b
ON a~key_field = b~key_field
WHEN NOT MATCHED
THEN INSERT ( key_field, char1 ) VALUES ( b~key_field, coalesce( b~char1, 'ABAP' ) ).
display_dbtab_content( out ).
ENDMETHOD.
METHOD m11_dynamic_merge.
set_example_divider( out = out text = |{ text }: Dynamic MERGE statements | ).
prep_db( ).
DATA(dyn_merge) = `INTO zdemo_abap_tab1 USING zdemo_abap_tab2 ` &&
`ON zdemo_abap_tab1~key_field = zdemo_abap_tab2~key_field ` &&
`WHEN MATCHED THEN UPDATE SET char1 = '#'`.
MERGE (dyn_merge).
display_dbtab_content( out ).
out->write( |\n| ).
prep_db( ).
"Erroneous content for dynamic merge statement
"In the example statement, INTO is missing.
DATA(dyn_merge_error) = `zdemo_abap_tab1 USING zdemo_abap_tab2 ` &&
`ON zdemo_abap_tab1~key_field = zdemo_abap_tab2~key_field ` &&
`WHEN MATCHED THEN UPDATE SET char1 = '?'`.
TRY.
MERGE (dyn_merge_error).
display_dbtab_content( out ).
CATCH cx_sy_dynamic_osql_syntax INTO DATA(err).
out->write( err->get_text( ) ).
ENDTRY.
out->write( |\n| ).
out->write( |\n| ).
prep_db( ).
"The following statement illustrates a dynamic MERGE statetement
"using a string table.
DATA(dyn_merge_tab) = VALUE string_table(
( `INTO zdemo_abap_tab1 USING zdemo_abap_tab2` )
( `ON zdemo_abap_tab1~key_field = zdemo_abap_tab2~key_field` )
( `WHEN MATCHED THEN UPDATE SET char1 = '*'` ) ).
MERGE (dyn_merge_tab).
display_dbtab_content( out ).
ENDMETHOD.
METHOD m12_system_fields.
set_example_divider( out = out text = |{ text }: System field setting| ).
"sy-subrc: 0 if at least one entry in the target was updated, inserted
" or deleted; otherwise, the value is 4.
"sy-dbcnt: The sum of all entries updated, inserted and/or deleted in
" the target.
prep_db( ).
prep_it( ).
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN UPDATE SET char1 = '#'
WHEN NOT MATCHED THEN INSERT ALL.
DATA(sysubrc) = sy-subrc.
DATA(sydbcnt) = sy-dbcnt.
out->write( |sy-subrc: { sysubrc }| ).
out->write( |sy-dbcnt: { sydbcnt }| ).
out->write( |\n| ).
out->write( |\n| ).
display_dbtab_content( out ).
out->write( |\n| ).
out->write( |\n| ).
prep_db( ).
it = VALUE #( ( comp_a = 123
comp_b = 'IT_A'
comp_c = 'IT_B'
comp_d = 456
comp_e = 789 ) ).
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN UPDATE SET char1 = '#'.
sysubrc = sy-subrc.
sydbcnt = sy-dbcnt.
out->write( |sy-subrc: { sysubrc }| ).
out->write( |sy-dbcnt: { sydbcnt }| ).
out->write( |\n| ).
out->write( |\n| ).
display_dbtab_content( out ).
out->write( |\n| ).
out->write( |\n| ).
prep_db( ).
it = VALUE #( ( comp_a = 1 )
( comp_a = 2 )
( comp_a = 123
comp_b = 'IT_A'
comp_c = 'IT_B'
comp_d = 100
comp_e = 200 )
( comp_a = 456
comp_b = 'IT_C'
comp_c = 'IT_D'
comp_d = 300
comp_e = 400 ) ).
MERGE INTO zdemo_abap_tab1 AS a
USING @it AS b
ON a~key_field = b~comp_a
WHEN MATCHED THEN DELETE
WHEN NOT MATCHED THEN INSERT ALL.
sysubrc = sy-subrc.
sydbcnt = sy-dbcnt.
out->write( |sy-subrc: { sysubrc }| ).
out->write( |sy-dbcnt: { sydbcnt }| ).
out->write( |\n| ).
out->write( |\n| ).
display_dbtab_content( out ).
ENDMETHOD.
METHOD set_example_divider.
out->write( |\n| ).
out->write( |*&{ repeat( val = `-` occ = strlen( text ) + 2 ) }*| ).
out->write( |*& { text }| ).
out->write( |*&{ repeat( val = `-` occ = strlen( text ) + 2 ) }*| ).
out->write( |\n| ).
out->write( |\n| ).
ENDMETHOD.
ENDCLASS.
⬆️ back to top
Dynamic ABAP SQL Statements
- ABAP SQL statements offer syntax options for dynamic programming.
- For example, you can specify the data source to read from dynamically.
- Find more information and code snippets in the ABAP Keyword Documentation or the Dynamic Programming cheat sheet.
DATA(dbtab) = 'ZDEMO_ABAP_FLSCH'.
"Selecting from a dynamically specified database table.
SELECT *
FROM (dbtab)
WHERE ...
INTO ...
⬆️ back to top
CRUD Operations Using CDS Artifacts
- The code examples above primarily use DDIC database tables for CRUD operations.
- CDS artifacts are available that allow not only reading but also creating, updating, and deleting.
- Table Entities
- Table entities are CDS entities that define database tables on the SAP HANA database linked to AS ABAP.
- They are - with restrictions currently - considered successors of the classic DDIC database table, and also represent global structured types usable in ABAP.
- Syntax:
define table entity .... - For more information, refer to the ABAP Data Models guide, for example, here.
- Writable CDS View Entities
- Writable CDS view entities allow you to modify underlying database data using ABAP SQL.
- Syntax:
define writable view entity .... - These entities, like many other CDS artifacts, represent global structured types usable in ABAP, but not in the ABAP Dictionary.
- Note that there are definition restrictions. For example, you cannot define writable CDS view entities if selecting from multiple data sources or using joins.
- Writable CDS external entities are available, too. They allow CRUD operations using external artifacts via service connections. Find more information here.
Example
- The following example demonstrates a table entity and a writable CDS view enitity.
- The writable CDS view entity uses the table entity as its data source. A DDIC database is also possible.
🟢 Click to expand for example code
- The example uses a zoo animal context. To explore the example, create three ABAP repository objects: 2 CDS artifacts, 1 example class.
- For the CDS artifacts, right-click your package and choose New -> Other ABAP Repository Objects in ADT. Filter for data definition, and walk through the wizard. Use the example's artifact names (
zdemo_abap_animals_te for the table entity, and zdemo_abap_animals_we for the writable CDS view entity), or use other names and adapt the code accordingly. - After activation, choose F9 in the class in ADT to execute it. The example is set up to display output in the console.
- The example class performs CRUD operations on both CDS artifacts. The example includes ABAP SQL
SELECT, INSERT, MODIFY, UPDATE, and DELETE statements.
| ABAP repository object | Notes/Code |
|
Table entity
|
@ClientHandling.type: #CLIENT_INDEPENDENT
@AbapCatalog.deliveryClass: #APPLICATION_DATA
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'CDS table entity'
define table entity zdemo_abap_animals_te
{
key id : abap.int4;
animal_name : abap.char(20);
species : abap.char(20);
age : abap.int4;
country_of_origin : abap.char(20);
arrival_date : abap.datn;
is_carnivore : abap_boolean;
}
|
|
Writable CDS view entity
|
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'Writable CDS view entity'
@Metadata.ignorePropagatedAnnotations: true
define writable view entity zdemo_abap_animals_we
as select from zdemo_abap_animals_te
{
key id,
animal_name,
species,
age,
country_of_origin,
arrival_date,
is_carnivore
}
|
|
Class
|
CLASS zcl_demo_abap DEFINITION
PUBLIC
FINAL
CREATE PUBLIC .
PUBLIC SECTION.
INTERFACES if_oo_adt_classrun.
PROTECTED SECTION.
PRIVATE SECTION.
ENDCLASS.
CLASS zcl_demo_abap IMPLEMENTATION.
METHOD if_oo_adt_classrun~main.
*&---------------------------------------------------------------------*
*& Using table entities and writable CDS view entities as data types
*& in ABAP
*&---------------------------------------------------------------------*
DATA struc_table_entity TYPE zdemo_abap_animals_te.
TYPES struc_type_table_entity TYPE zdemo_abap_animals_te.
DATA(another_struc_table_ent) = VALUE zdemo_abap_animals_te( id = 1 animal_name = 'Zeus' ).
DATA struc_writable_ve TYPE zdemo_abap_animals_we.
TYPES struc_type_writable_ve TYPE zdemo_abap_animals_we.
DATA(another_struc_writable_ve) = VALUE zdemo_abap_animals_we( id = 2 animal_name = 'Leo' ).
*&---------------------------------------------------------------------*
*& Performing CRUD operations using a table entity and ABAP SQL
*&---------------------------------------------------------------------*
out->write( `---- Performing CRUD operations on table entities using ABAP SQL ----` ).
out->write( |\n| ).
DELETE FROM zdemo_abap_animals_te.
"DATA animals_table type table of zdemo_abap_animals_te with empty key.
INSERT zdemo_abap_animals_te FROM TABLE @( VALUE #(
( id = 1 animal_name = 'Zeus' species = 'Lion' age = 5 country_of_origin = '' arrival_date = '20220115' is_carnivore = abap_true )
( id = 2 animal_name = 'Leo' species = 'Lion' age = 7 country_of_origin = '' arrival_date = '20241205' is_carnivore = abap_true )
( id = 3 animal_name = 'Jumbo' species = 'Elephant' age = 10 country_of_origin = 'India' arrival_date = '20190526' is_carnivore = abap_false )
( id = 4 animal_name = 'Little' species = 'Elephant' age = 4 country_of_origin = 'India' arrival_date = '20240314' is_carnivore = abap_false )
( id = 5 animal_name = 'Daisy' species = 'Zebra' age = 4 country_of_origin = 'South Africa' arrival_date = '20220207' is_carnivore = abap_false )
( id = 6 animal_name = 'Buddy' species = 'Owl' age = 3 country_of_origin = 'Canada' arrival_date = '20210111' is_carnivore = abap_true )
( id = 7 animal_name = 'Sunny' species = 'Dolphin' age = 7 country_of_origin = 'Australia' arrival_date = '20190527' is_carnivore = abap_false )
( id = 8 animal_name = 'Nala' species = 'Giraffe' age = 6 country_of_origin = 'Tanzania' arrival_date = '20210807' is_carnivore = abap_false )
( id = 9 animal_name = 'Oscar' species = 'Tiger' age = 8 country_of_origin = 'Russia' arrival_date = '20191018' is_carnivore = abap_true )
( id = 10 animal_name = 'Charlie' species = 'Chimpanzee' is_carnivore = abap_false )
( id = 12 ) ) ).
out->write( |sy-dbcnt after 1st INSERT: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_te INTO @DATA(number_of_entries).
out->write( |Number of data entries after 1st INSERT: { number_of_entries }| ).
INSERT zdemo_abap_animals_te FROM TABLE @( VALUE #(
( id = 1 animal_name = 'Lora' species = 'Parrot' age = 2 country_of_origin = 'Mexico' arrival_date = '20240712' is_carnivore = abap_false )
( id = 11 animal_name = 'Teddy' species = 'Koala' age = 4 country_of_origin = 'Australia' arrival_date = '20240225' is_carnivore = abap_false ) ) )
ACCEPTING DUPLICATE KEYS.
out->write( |sy-dbcnt after 2nd INSERT: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_te INTO @number_of_entries.
out->write( |Number of data entries after 1st INSERT: { number_of_entries }| ).
MODIFY zdemo_abap_animals_te FROM TABLE @( VALUE #(
( id = 12 animal_name = 'Peanut' species = 'Penguin' age = 6 country_of_origin = 'Antarctica' arrival_date = '20200410' is_carnivore = abap_false )
( id = 13 animal_name = 'Lora' species = 'Parrot' age = 2 country_of_origin = 'Mexico' arrival_date = '20240712' is_carnivore = abap_false )
( id = 14 animal_name = 'Jumpy' species = 'Kangaroo' age = 4 country_of_origin = 'Australia' arrival_date = '20211117' is_carnivore = abap_false ) ) ).
out->write( |sy-dbcnt after MODIFY: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_te INTO @number_of_entries.
out->write( |Number of data entries after MODIFY: { number_of_entries }| ).
SELECT SINGLE * FROM zdemo_abap_animals_te WHERE id = 10 INTO @DATA(data_set).
UPDATE zdemo_abap_animals_te FROM @( VALUE #( BASE data_set age = 3 country_of_origin = 'Uganda' arrival_date = '20231214' ) ).
out->write( |sy-dbcnt after 1st UPDATE: { sy-dbcnt }| ).
UPDATE zdemo_abap_animals_te SET country_of_origin = 'Kenya' WHERE country_of_origin IS INITIAL.
out->write( |sy-dbcnt after 2nd UPDATE: { sy-dbcnt }| ).
SELECT * FROM zdemo_abap_animals_te ORDER BY id INTO TABLE @DATA(itab_te).
out->write( `Table entries retrieved from table entity:` ).
out->write( itab_te ).
DELETE FROM zdemo_abap_animals_te WHERE id > 10.
out->write( |sy-dbcnt after DELETE: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_te INTO @number_of_entries.
out->write( |Number of data entries after DELETE: { number_of_entries }| ).
out->write( |\n| ).
out->write( repeat( val = '_' occ = 100 ) ).
out->write( |\n| ).
*&---------------------------------------------------------------------*
*& Performing CRUD operations using a writable CDS view entity and ABAP SQL
*&---------------------------------------------------------------------*
out->write( `---- Performing CRUD operations on a writable CDS view entity using ABAP SQL ----` ).
out->write( |\n| ).
SELECT COUNT(*) FROM zdemo_abap_animals_we INTO @DATA(we_number_of_entries).
out->write( |Number of data entries accessed via writable CDS view entity: { we_number_of_entries }| ).
INSERT zdemo_abap_animals_we FROM TABLE @( VALUE #(
( id = 15 )
( id = 16 animal_name = 'Fuzz' species = 'Polar bear' ) ) ).
out->write( |sy-dbcnt after INSERT: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_we INTO @we_number_of_entries.
out->write( |Number of data entries after INSERT: { we_number_of_entries }| ).
MODIFY zdemo_abap_animals_we FROM @(
VALUE #( id = 15 animal_name = 'Hunter' species = 'Jaguar' age = 3 country_of_origin = 'Brazil' arrival_date = '20230423' is_carnivore = abap_true ) ).
out->write( |sy-dbcnt after MODIFY: { sy-dbcnt }| ).
SELECT SINGLE * FROM zdemo_abap_animals_we WHERE id = 16 INTO @DATA(entry).
UPDATE zdemo_abap_animals_we FROM @(
VALUE #( BASE entry animal_name = 'Fuzzy' age = 7 country_of_origin = 'Canada' arrival_date = '20190223' is_carnivore = abap_true ) ).
out->write( |sy-dbcnt after UPDATE: { sy-dbcnt }| ).
DELETE zdemo_abap_animals_we FROM @( VALUE #( id = 10 ) ).
out->write( |sy-dbcnt after 1st DELETE: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_we INTO @we_number_of_entries.
out->write( |Number of data entries after 1st DELETE: { we_number_of_entries }| ).
DELETE FROM zdemo_abap_animals_we WHERE id <= 5.
out->write( |sy-dbcnt after 2nd DELETE: { sy-dbcnt }| ).
SELECT COUNT(*) FROM zdemo_abap_animals_we INTO @we_number_of_entries.
out->write( |Number of data entries after 2nd DELETE: { we_number_of_entries }| ).
SELECT * FROM zdemo_abap_animals_we ORDER BY id INTO TABLE @DATA(itab_we).
out->write( `Table entries retrieved via writable CDS view entity:` ).
out->write( itab_we ).
ENDMETHOD.
ENDCLASS.
|
⬆️ back to top
Excursions
Evaluating ABAP System Fields after ABAP SQL Statements
As mentioned in several sections above, ABAP system fields such as sy-subrc and sy-dbcnt are set in the context of ABAP SQL statements, which can be evaluated, e.g. using a subsequent statement IF sy-subrc = .... The following table shows a selection of values.
| Statement | sy-subrc | sy-dbcnt |
|---|
SELECT | 0: Values were passed successfully to a target data object
4: Result set is empty. Typically, this means that there are no entries found (matching conditions specified). | The number of rows that were passed. |
INSERT | 0: Single row (work area specified) or all rows (internal table specified) inserted
4: Row not or not all rows inserted (in case of multiple rows to be inserted, ACCEPTING DUPLICATE KEYS was specified) | The number of rows that were inserted. |
MODIFY | 0: Single row (work area specified) or all rows (internal table specified) inserted or modified
4: Row not or not all rows inserted or modified | The number of rows that were processed. |
UPDATE | 0: Single row (work area specified) or all rows updated
4: Row not or not all rows updated | The number of rows that were updated. |
DELETE | DELETE FROM target variant:
0: At least one row deleted (with WHERE clause specified), all or n rows deleted (without WHERE clause specified)
4: No row deleted
DELETE target FROM variant:
0: Row deleted (work area specified), all rows deleted (internal table specified)
4: Row not deleted (work area specified), not all specified rows deleted (internal table specified) | The number of rows that were deleted. |
The following example explores the setting of sy-subrc and sy-dbcnt by ABAP SQL statements using a demo database table from the cheat sheet repository.
"Clearing a demo database table
DELETE FROM zdemo_abap_tab1.
*&---------------------------------------------------------------------*
*& INSERT
*&---------------------------------------------------------------------*
INSERT zdemo_abap_tab1 FROM @( VALUE #( key_field = 1 ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 2 )
( key_field = 3 ) ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 2.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 2 )
( key_field = 3 ) ) ) ACCEPTING DUPLICATE KEYS.
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 0.
INSERT zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 3 )
( key_field = 4 ) ) ) ACCEPTING DUPLICATE KEYS.
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 1.
*&---------------------------------------------------------------------*
*& UPDATE
*&---------------------------------------------------------------------*
UPDATE zdemo_abap_tab1 FROM @( VALUE #( key_field = 1 num1 = 1 ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
UPDATE zdemo_abap_tab1 FROM @( VALUE #( key_field = 9999 num1 = 9999 ) ).
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 0.
UPDATE zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 2 num1 = 2 )
( key_field = 3 num1 = 3 ) ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 2.
UPDATE zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 4 num1 = 4 )
( key_field = 1111 num1 = 1111 ) ) ).
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 1.
*&---------------------------------------------------------------------*
*& MODIFY
*&---------------------------------------------------------------------*
MODIFY zdemo_abap_tab1 FROM @( VALUE #( key_field = 1 num1 = 11 ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
MODIFY zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 2 num1 = 22 ) "Entry modified
( key_field = 5 num1 = 5 ) ) ). "Entry inserted
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 2.
*&---------------------------------------------------------------------*
*& SELECT
*&---------------------------------------------------------------------*
SELECT *
FROM zdemo_abap_tab1
INTO TABLE @DATA(itab).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 5.
ASSERT sy-dbcnt = lines( itab ).
SELECT *
FROM zdemo_abap_tab1
WHERE key_field <= 3
INTO TABLE @DATA(itab2).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 3.
SELECT *
FROM zdemo_abap_tab1
WHERE key_field > 10
INTO TABLE @DATA(itab3).
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 0.
*&---------------------------------------------------------------------*
*& DELETE
*&---------------------------------------------------------------------*
DELETE zdemo_abap_tab1 FROM @( VALUE #( key_field = 1 ) ).
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
DELETE zdemo_abap_tab1 FROM TABLE @( VALUE #( ( key_field = 1 ) "Entry not existent
( key_field = 2 )
( key_field = 3 ) ) ).
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 2.
DELETE FROM zdemo_abap_tab1 WHERE key_field >= 5.
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
"Only one entry left in the database table
DELETE FROM zdemo_abap_tab1.
ASSERT sy-subrc = 0.
ASSERT sy-dbcnt = 1.
SELECT *
FROM zdemo_abap_tab1
INTO TABLE @DATA(itab4).
ASSERT sy-subrc = 4.
ASSERT sy-dbcnt = 0.
⬆️ back to top
Typed Literals
- Built-in DDIC types cannot be used directly in ABAP, e.g. for typing local data objects.
- However, the types can be used in ABAP SQL, and also ABAP CDS, in the context of typed literals. Note that some special types cannot be used in this context.
- Advantages of typed literals over untyped literals:
- Allow type-safe use of literals
- Eliminate the need for (implicit type) conversions and casts, which can lead to surprising or erroneous results. Also consider the conversion costs in terms of performance (typed literals are passed to the database and evaluated there without ABAP-specific type conversions).
- For better readability (you can immediately see what type is being used)
- More information:
- Typed literals in ABAP SQL
- Typed literals in ABAP CDS
- They can also be used in casts in ABAP SQL and CDS.
"Miscellaneous typed literals in an ABAP SQL statement
"Note that typed literals can be specified in read
"positions where host variables are possible.
DATA(tmstamp) = CONV timestamp( '20240808112517' ).
DATA(some_string) = `Some string`.
SELECT SINGLE
FROM zdemo_abap_fli
FIELDS
carrid,
@some_string AS host_var,
char`X` AS flag,
int8`32984723948723` AS int8,
raw`11` AS raw,
numc`1234` AS numc,
utclong`2024-01-01T10:01:02,2` AS utc,
tims`101507` AS tims,
curr`173.95` AS curr,
"Multiple cast expressions splitting a time stamp into date and time parts
CAST( CAST( div( @tmstamp, 1000000 ) AS CHAR ) AS DATS ) AS date,
CAST( substring( CAST( @tmstamp AS CHAR ), 9, 6 ) AS TIMS ) AS time,
"Untyped literal
'ABAP' AS txt
WHERE fldate = datn`20240102`
INTO @DATA(misc_typed_literals).
⬆️ back to top
ABAP SQL and Client Handling
[!IMPORTANT] - ABAP SQL features implicit client handling. - While you can disable this in classic ABAP, it is not an option in ABAP Cloud, where you are limited to accessing your own client. - Unlike ABAP SQL, there is no implicit client handling in Native SQL. AMDP, which uses Native SQL, is usable in ABAP Cloud, but it is crucial to ensure that AMDP only accesses client-safe repository objects, meaning it only accesses data from your own client. For this purpose, dedicated additions are provided.
Notes on ABAP SQL:
- An SAP system can have multiple clients, each distinguished by a unique client ID.
- Each client can contain unique data. For instance, when you log into the system, you select a client and can only access the data within that specific client. If you log into client 000, for example, your access is restricted to the data of client 000, not any other clients.
- Client-dependent data is managed through a client column. So, if a database table has a client column, it contains client-dependent data. However, there are also client-independent data sources, which contain data not specific to any client. These are typically accessed by system programs.
- ABAP SQL features implicit client handling, i.e. it automatically handles client selection. When you execute an ABAP SQL statement in a client, the system automatically uses the current client. There is no need to specify the client separately, as the compiler automatically manages client handling.
- See the following example using a SELECT statement selecting from a database table.
"Using the current client implicitly
SELECT * FROM zdemo_abap_carr INTO TABLE @DATA(itab1).
"For example, it is not possible to specify the client explicitly in a WHERE clause.
"The following statement shows a syntax error.
"SELECT * FROM zdemo_abap_carr WHERE mandt = '123' INTO TABLE @DATA(itab2).
- However, in classic ABAP, not in ABAP Cloud, you can use the
USING CLIENT (F1 docu for Standard ABAP) addition that modifies this default behavior. It disables implicit client handling. - With the addition, you can specify other clients from which to retrieve data. Find more information in the ABAP Keyword Documentation.
- You may also stumble on the
CLIENT SPECIFIED addition. It is obsolete, only USING CLIENT should be used. - The following (classic ABAP only) code shows a variety of syntax options. Note that it uses a data source of the cheat sheet repository. For exploration, you may want to use another data source. You may also want to check the commands that are passed by the ABAP SQL Interface when activating the SQL trace (transaction ST05) to explore the use of another client ID and more.
"---- The following code is for classic ABAP only. ----
"SQL SELECT statements turning off the implicit client handling, and
"specifying different clients to retrieve data from
"Literal containing a client ID
SELECT * FROM zdemo_abap_carr USING CLIENT '000' INTO TABLE @DATA(itab3).
"Data object containing a client ID (must be of type c length 3)
"Note: If the client does not exist, the result set is empty.
TYPES c3 LENGTH 3.
DATA client_id TYPE c3 VALUE '000'.
SELECT * FROM zdemo_abap_carr USING CLIENT @client_id INTO TABLE @DATA(itab4).
"Selecting from multiple clients
"Using a ranges table
DATA client_range TYPE RANGE OF c3.
client_range = VALUE #( ( sign = 'I' option = 'EQ' low = '000' )
( sign = 'I' option = 'BT' low = '100' high = '200' ) ).
SELECT * FROM zdemo_abap_carr USING CLIENTS IN @client_range INTO TABLE @DATA(itab5).
"Selecting data of all clients whose client IDs are in the column MANDT of the
"system table T000
SELECT * FROM zdemo_abap_carr USING CLIENTS IN t000 INTO TABLE @DATA(itab6).
"Selecting data of all clients regardless of the content of the client column
SELECT * FROM zdemo_abap_carr USING ALL CLIENTS INTO TABLE @DATA(itab7).
- Find more information on client handling here.
Notes on Native SQL/AMDP
- Unlike ABAP SQL, Native SQL does not have implicit handling, so you must explicitly pass the client.
- Native SQL is passed directly to the database.
- AMDP, which uses Native SQL, also does not support implicit client handling.
- While AMDP is permitted in ABAP Cloud, accessing client-dependent data via Native SQL is not supported.
- When using AMDP in ABAP Cloud, it is crucial to access only the current client. Client-safety must be ensured.
- AMDP methods in ABAP Cloud must be client-safe, meaning the SQLScript code should access data only in your client. Use only artifacts that limit access to a single client or those that are client-independent.
- Consequently, all objects in the
USING list must be client-safe, including CDS table functions implemented as AMDP methods. - There are additions to cover client-safe aspects, ensuring access only to your client data.
- Find more information about client safety in AMDP here.
Notes on CDS view entities
⬆️ back to top
RAP-Specific ABAP SQL Variants
There are RAP-specific variants of ABAP SQL statements that use the MAPPING FROM ENTITY addition. Find more information here and in the ABAP for RAP: Entity Manipulation Language (ABAP EML) cheat sheet.
⬆️ back to top
More Information
- This topic serves as the entry point for topics about ABAP SQL in the ABAP Keyword Documentation. For the full details, check the subtopics there, especially topics not covered in this cheat sheet.
- Find more topics in the ABAP Keyword Documentation such as the following:
- ABAP SQL statements can contain SQL path expressions. For more information, see here. The executable example of the CDS view entities cheat sheet includes demo SQL statements.
- Find here and overview on exceptions that can occur in the context of ABAP SQL statements.
- As a rule, bear in mind performance aspects when using ABAP SQL statements. Find more information in the Performance Notes. The code snippets here only focus on syntax options.
- You can specify hierarchy data as a data source in ABAP SQL
SELECT statements. Find more information and examples in the ABAP Keyword Documentation. For working with hierarchies, see the ABAP SQL: Working with Hierarchies cheat sheet.
Executable Example
zcl_demo_abap_sql
[!NOTE] - The executable example covers the following topics, among others: - Reading from database tables using SELECT - Various additions to SELECT statements - Changing data in database tables using INSERT, UPDATE, MODIFY and DELETE - Excursions: Operands and expressions in ABAP SQL statements - The steps to import and run the code are outlined here. - Disclaimer
